Spin-on Filters
Different types of low pressure filters

What is a Spin-on Filter and Why do you Need it?

A spin-on filter is a low pressure hydraulic filter that is used as suction filter or to filter the return-line of the hydraulic circuit. Spin-on filters are easy to service due to the disposable filter cans which can be replaced by a replacement element completely.

Spin-on filters with disposable filter cans are not the most environmental friendly solution though. Every year over 500 million spin-on cans are disposed of in North American landfills only. This implies a waste of over 30 million gallons of residual oil and over 250 tons of scrap metal.

Type of Low Pressure Filters

How DTA can help save you time, effort and money on hydraulic filtration solutions

DTA offers the tools required for troubleshooting and addressing the cleanliness or performance demands of any hydraulic system. DTA can also supply the indicators that monitor a system's contamination level. Contamination indicators ensure that our customers can maintain the cleanliness of their hydraulic systems. Contact our sales engineers for further assistance.

Contact DTA Hydraulics
   +31 (0) 168 407 144
  +31 (0) 168 407 145
  hydraulics@dta.eu

We supply Spin-on Filters

A spin-on filter is a low pressure filter used for hydraulic filtration. It can be used as suction filter or as return-line filter of the hydraulic circuit. We supply spin-on filters, replacement filter elements and electric or visual filter indicators.

DTA Hydraulics supplies spin-on filters for hydraulic filtration

Suction and return-line spin-on filters
  • MXA1210QBG2GG121
  • MXA1210CBG2GG121
  • MXA1210CBU4RG121
  • MXA2310CBG2GG201
  • MXA2310CBU4RG201
Spin-on filter with reusable filter bowl
  • 12CS210QEBNKS121
  • 12CS210QEBNKG121
Filter indicators and replacement elements
  • FMUG2EBPG02L
  • FMUS2EBMG02L
  • FMUS3EBMG02L
  • MXR8550
  • MX1518410x4
  • MX1591410x4
  • 940763Q
Cannot find the spin-on filter you need?

Do you need spare parts or replacement filter elements?
Do not hesitate to contact us, we supply any part, anytime, anywhere!
 +31 (0) 168 407 144
 +31 (0) 168 407 1454
 hydraulics@dta.eu

Spin-on Filters product specifications

We supply spin-on filters and replacement elements of the Parker MX Series, which can be used for both suction and return-line applications. The Parker 12CS Series spin-on filters feature a reusable bowl and a disposable filter element made of nylon and fiberglass. This greatly reduces the environmental impact since hundreds of millions spin-on cans are disposed in landfills each year.

Spin-on filters have several unique features, such as:

Typical features of spin-on filters are:

  • Low cost due to simple design
  • Ease of maintenance
  • Suction or return-line filter
  • Wide variety of filter indicators

Typical parameters of spin-on filters are:

  • Maximum flow: up to 360 l/min (at 10 bar)
  • Maximum pressure: up to 35 bar
  • Micron ratings: 2, 3, 5, 10, 20 micron
  • Element material: glass fibre
Do you need more information about spin-on filters?

Please do not hesitate to contact us, we are doing our parts to keep you moving!
 +31 (0) 168 407 144
 +31 (0) 168 407 1454
 hydraulics@dta.eu

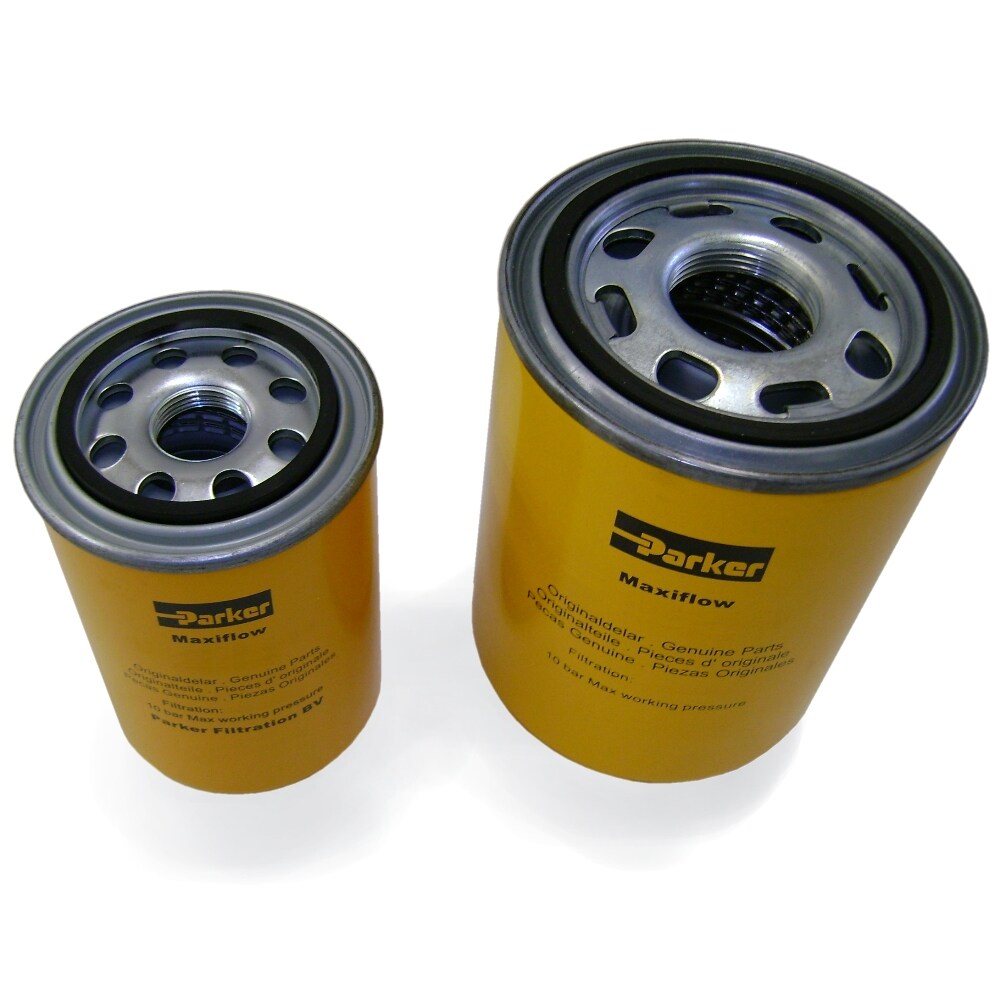

Maxiflow MX Series spin-on filter, max. 360 l/min - 10 bar

The Maxiflow spin-on filters are available in different size and application (i.e. return line or suction). The replacement filter elements and the complete filters with short availability are listed in the table below.

Part Number Flow (l/min) Bypass Ports Included Options Replacement Elements
MXA1210QBG2GG121 70     1.75 bar   G¾ Pressure Gauge MXR8550
MXA1210CBG2GG121 70     1.75 bar   G¾ Pressure Gauge MX1518410x4
MXA1210CBU4RG121 20 (suction)     0.20 bar   G¾ Vacuum Gauge MX1518410x4
MXA2310CBG2GG201 180     1.75 bar   G1¼ Pressure Gauge MX1591410x4
MXA2310CBU4RG201 48 (suction)     0.20 bar   G1¼ Vacuum Gauge MX1591410x4

Download datasheet of Maxiflow spin-on filters at Parker Hannifin's Hydraulic Filter Division

12CS Series coreless spin-on filter, max. 75 l/min - 35 bar

The coreless spin-on filter reduces waste significantly and is capable of operating at higher system pressures. The replacement filter elements and the complete filters with short availability are listed in the table below.

Part Number Flow (l/min) Bypass Ports Included Options Replacement Elements
12CS210QEBNKS121 75     3.4 bar SAE-12 None 940763Q
12CS210QEBNKG121 70     3.4 bar None 940763Q
12CS210QEBNXKIT1       None 940763Q
12CS220QEBNKG121       3.4 bar None 940762Q


Download datasheet of Coreless spin-on filters at Parker Hannifin's Hydraulic Filter Division


How DTA can help you save time, effort and money on sourcing hydraulic filter elements

DTA has considerable expertise in filtration technology and carries an extensive inventory of hydraulic filter elements from several different vendors. DTA can help you select the correct filter which will provide the optimal cleanliness solution for your hydraulic system.

For optimal filtration we recommend to replace your hydraulic filter elements on a regular basis.

Depending on your requirements, DTA can supply high-quality hydraulic filters from well-established manufacturers such as Hydac, Mahle, Eppensteiner, Argo Hytos, Pall, Internormen and MP Filtri. We keep stock of Parker Par Fit hydraulic filter interchange elements as cost-effective alternative to the manufacturers referred to above.
