Low Pressure Filters
Different types of low pressure filters

What is a Low Pressure Filter and Why do you Need it?

A low pressure filter normally operates at maximum pressures of up to 10 bar but some special type spin-on filters may operate at pressures of up to 35 bar and may also be considered as medium pressure hydraulic filters. A hydraulic filtration system includes at least a return line filter but most filtration systems have a suction filter installed as well. A suction filter is for coarse filtration and protects the pump from damage of large particles only.

Low pressure filters include suction filters, return line filters and bypass filtration systems.

Fine filtration is achieved by using return line hydraulic filters or even higher grades of filtration can be achieved by using a bypass filtration system. With dimensioning of return line hydraulic filters one should take into account the maximum possible hydraulic system flow. Especially when hydraulic differential cylinders are amongst the actuators, the oil return flow can be much higher compared to the maximum capacity of the hydraulic pumps used in the system.

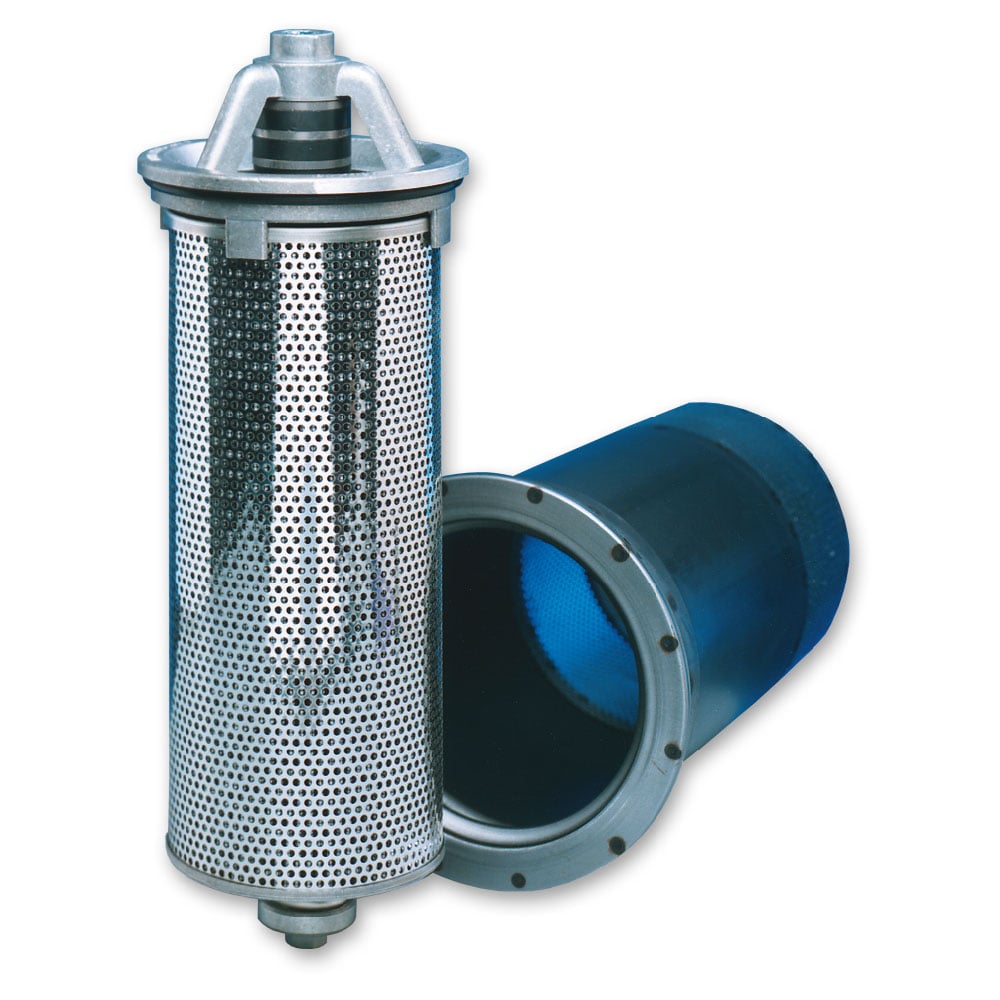

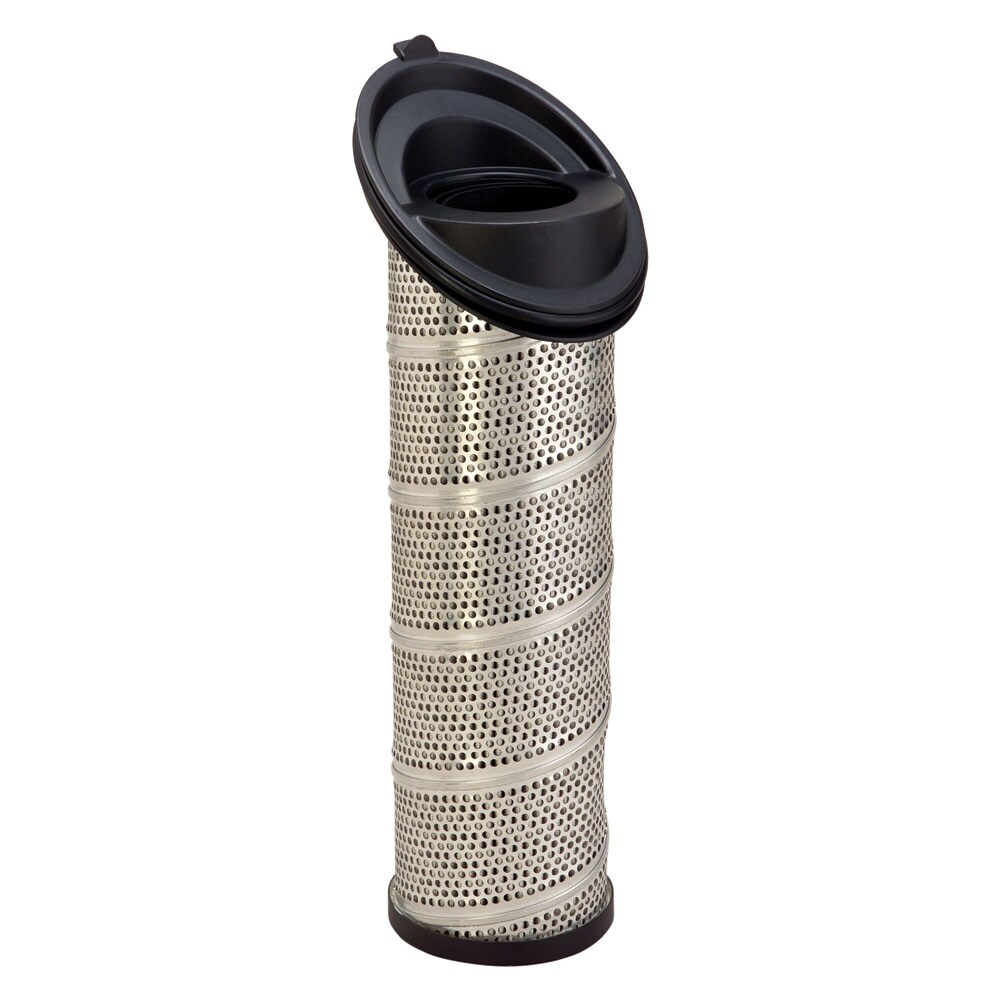

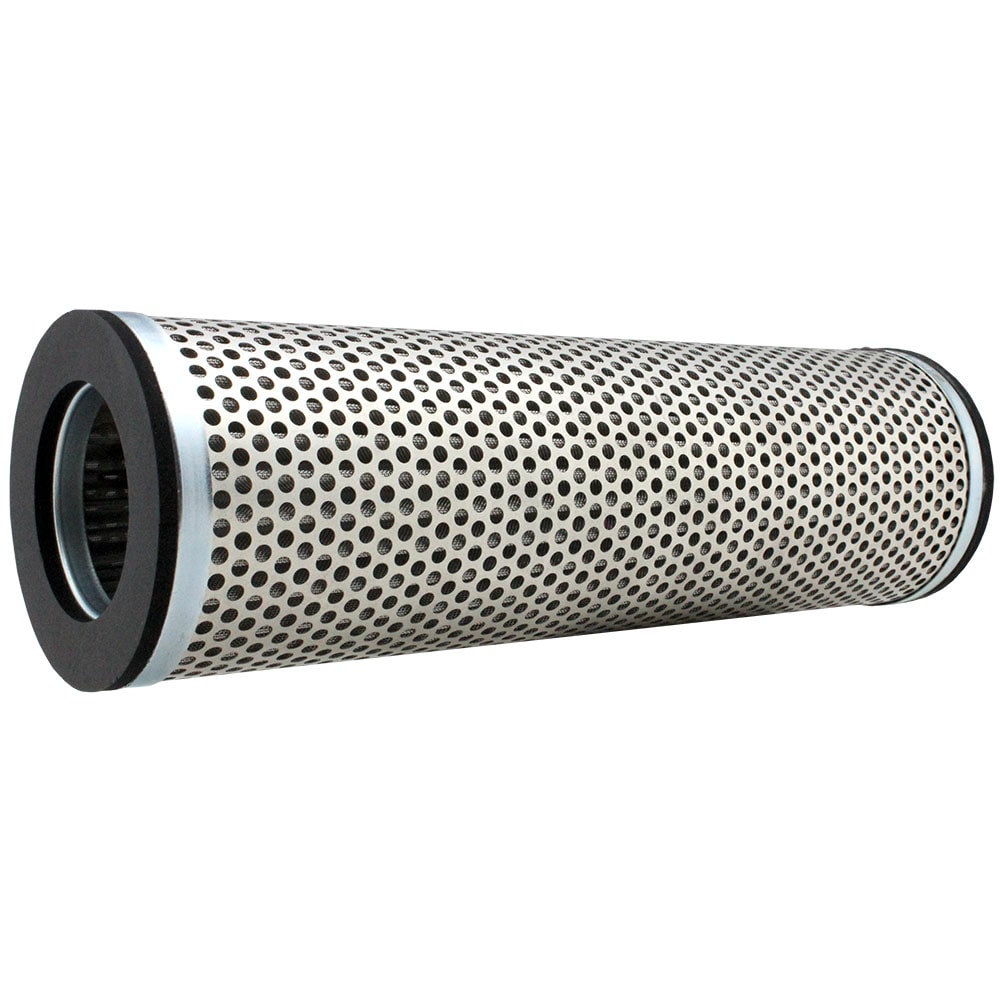

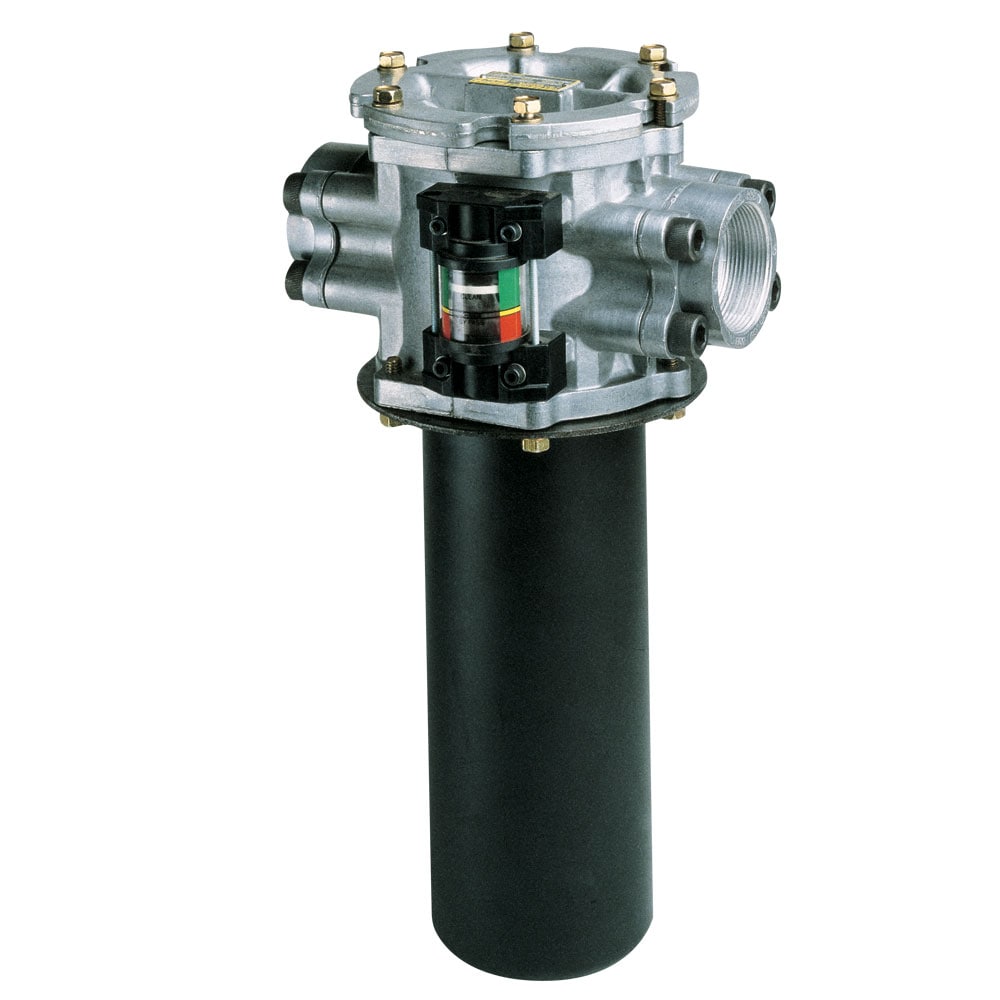

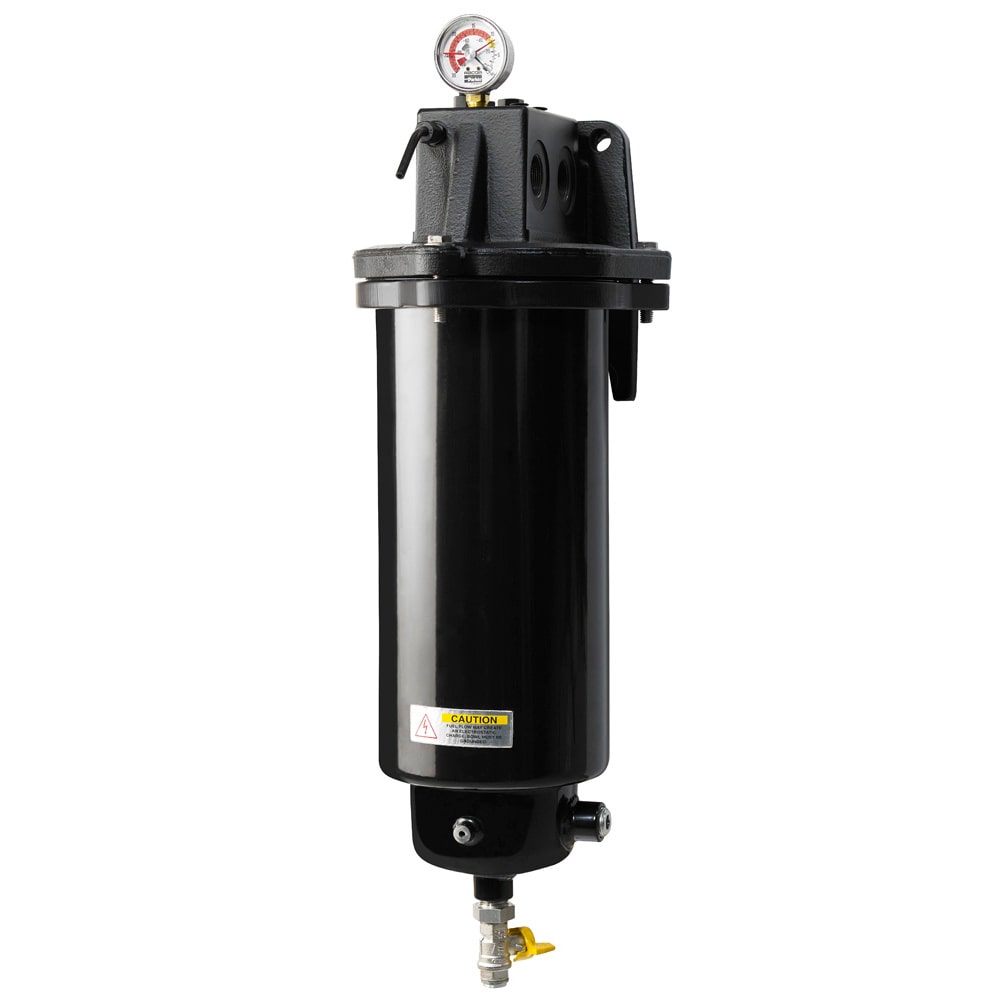

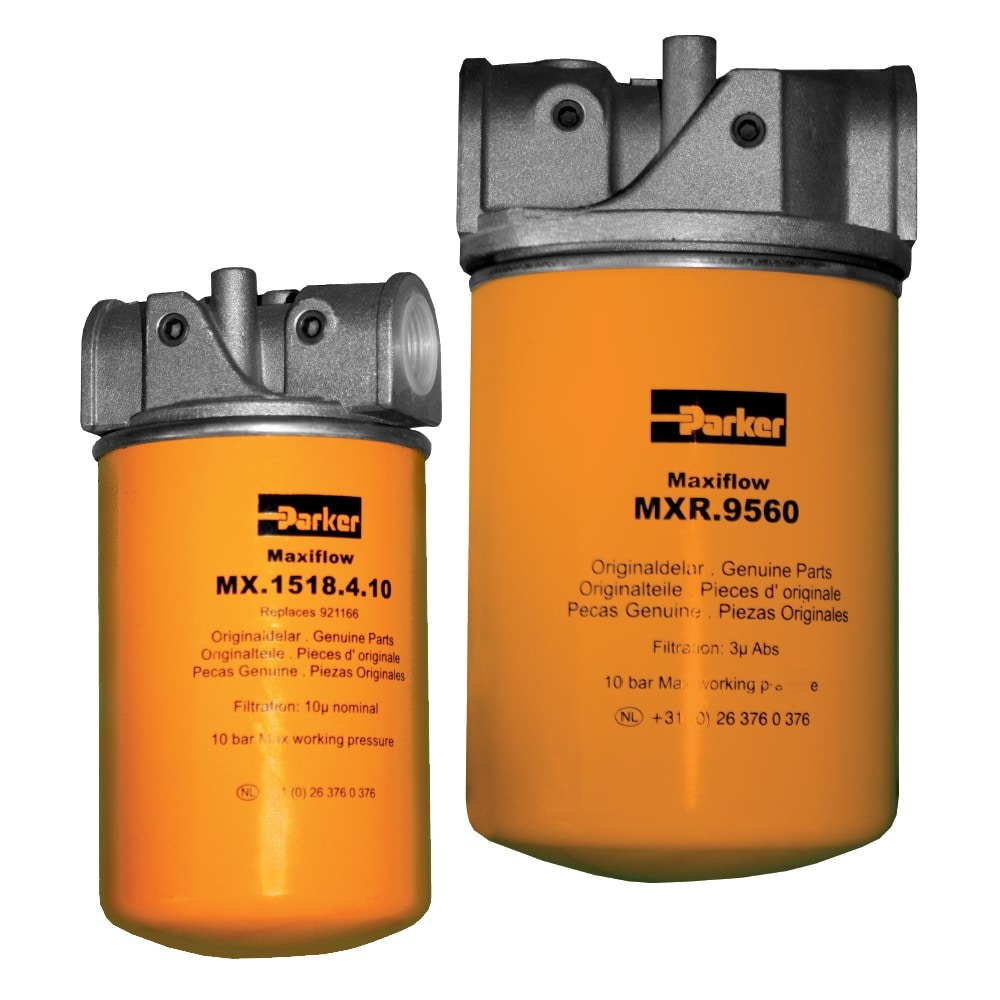

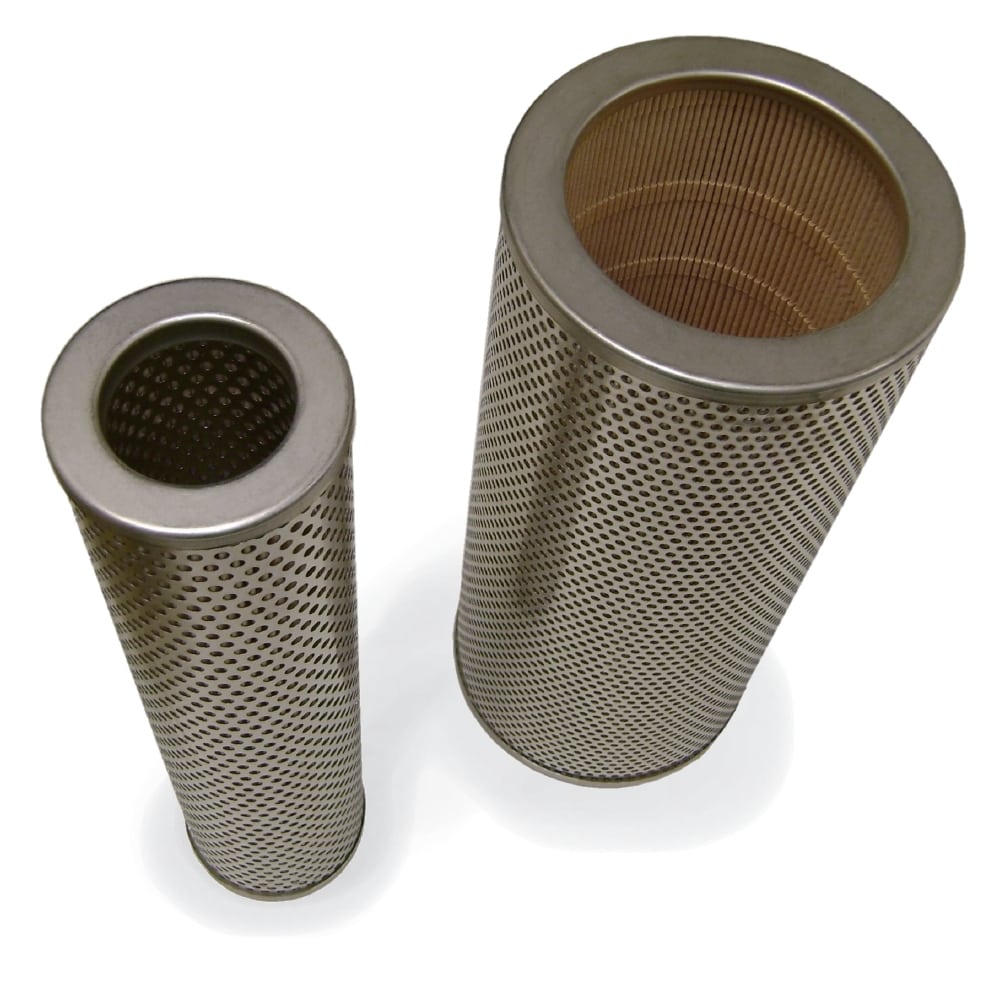

Type of Low Pressure Filters

How DTA can help save you time, effort and money on hydraulic filtration solutions

DTA offers the tools required for troubleshooting and addressing the cleanliness or performance demands of any hydraulic system. DTA can also supply the indicators that monitor a system's contamination level. Contamination indicators ensure that our customers can maintain the cleanliness of their hydraulic systems. Contact our sales engineers for further assistance.

Contact DTA Hydraulics
   +31 (0) 168 407 144
  +31 (0) 168 407 145
  hydraulics@dta.eu

RELIABLE PARTNER FOR ALL YOUR HYDRAULIC SUPPLIES AND REPAIRS

DTA is serving your industry with the supply of hydraulic parts and hydraulic components for more than 25 years. Since 2010 we have been fully qualified and certified as distributor hydraulics by Parker Hannifin. Together we developed a rapid delivery program for the genuine Denison Hydraulics single and multiple vane pumps. We support industrial and mobile applications and hold a considerable inventory of genuine parts, components and sub-assemblies.

Vane pumps and genuine spare parts in stock; over 25,000 configurations listed in our online pump catalogue!

Currently we can supply over 20,000 pump configurations from stock. All the hydraulic parts and components that we supply are new and genuinely manufactured by the high quality hydraulic manufacturer of your choosing. DTA can be your one-stop-shop and supplies high-quality brands only such as Parker Hannifin (Denison Hydraulics, Olaer, Calzoni, VOAC, Sterling Hydraulics), Bosch Rexroth (Brüninghaus, Eppensteiner, Hägglunds, Hydromatik, Oil-Control), Bucher Hydraulics, Moog, STAR Hydraulics, Hydac and Eaton (Char-Lynn, Eaton Hydraulics, Integrated Hydraulics, Vickers).
