Spool valve Directional controls

Directional spool valves comprise a moving spool situated in the valve housing. When an actuating force moves the control spool, the annular channels in the housing are connected or separated. Directional spool valves have several unique features, such as high switching power, low actuating force and a wide variety of control functions.

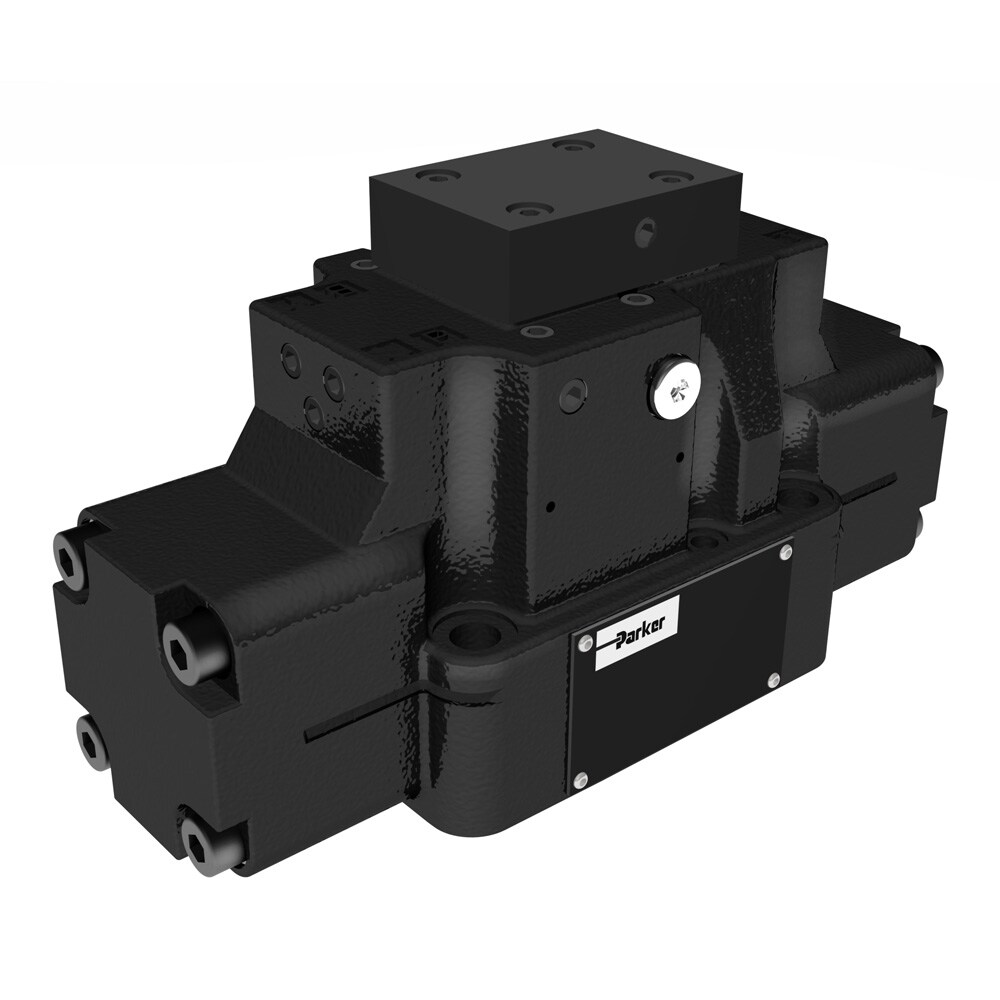

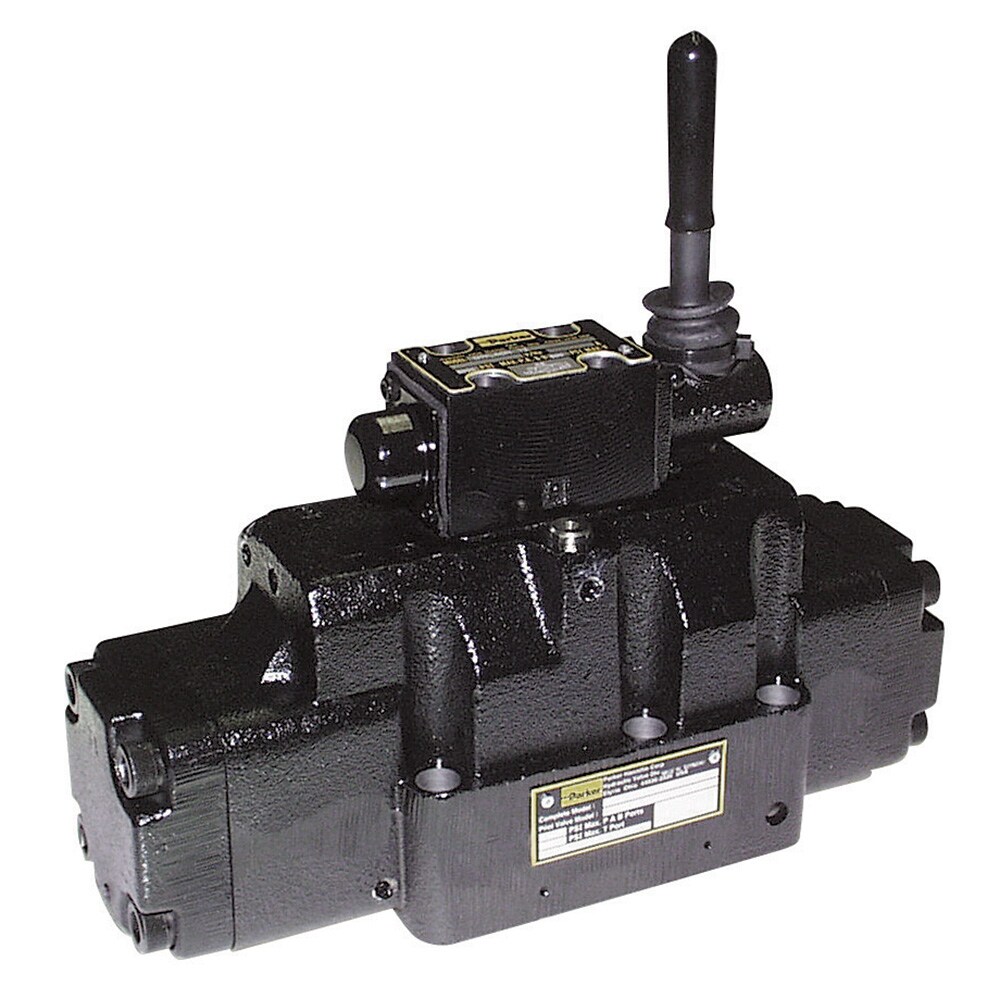

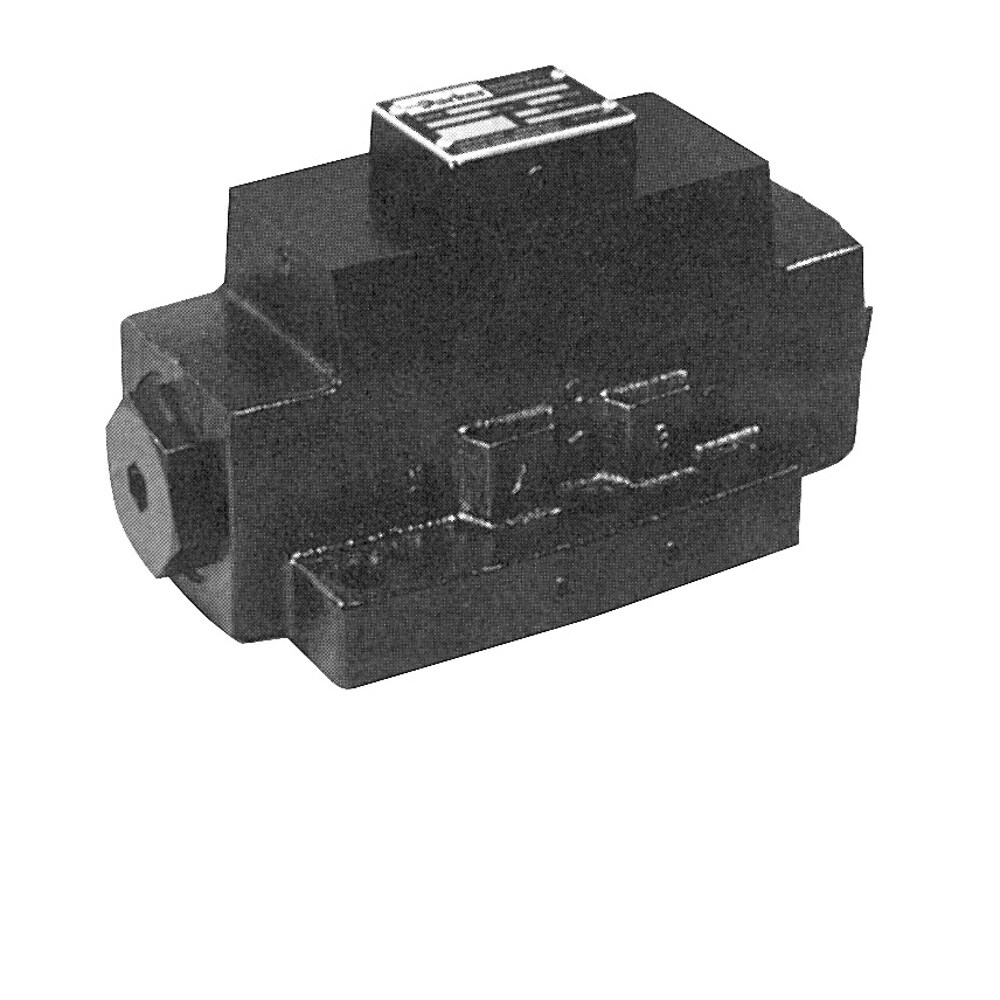

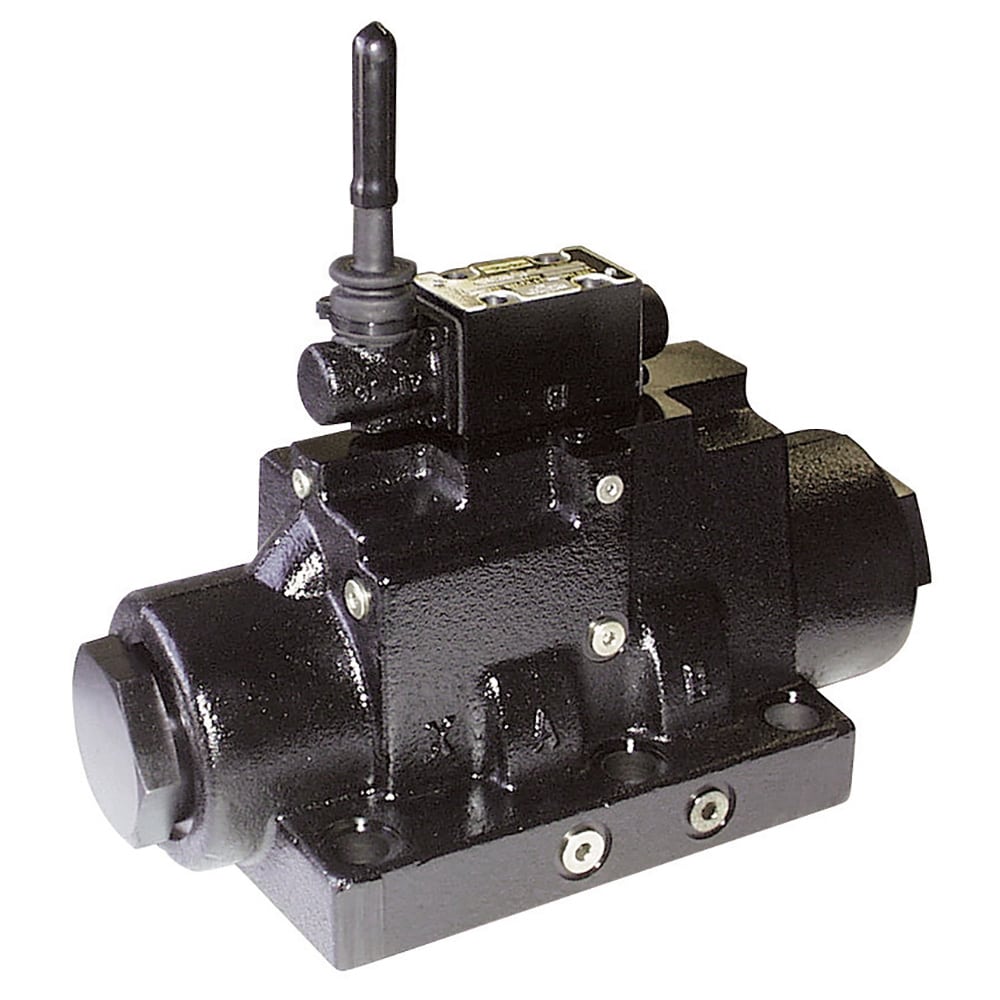

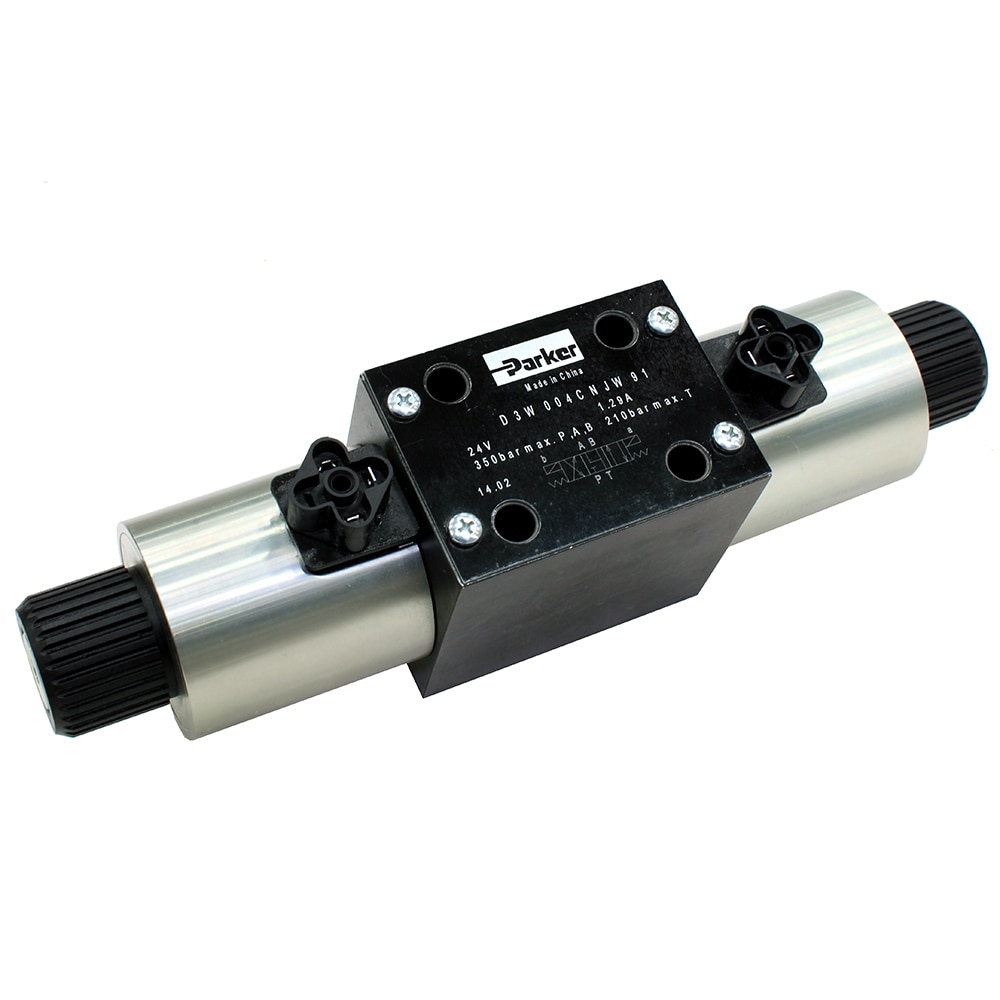

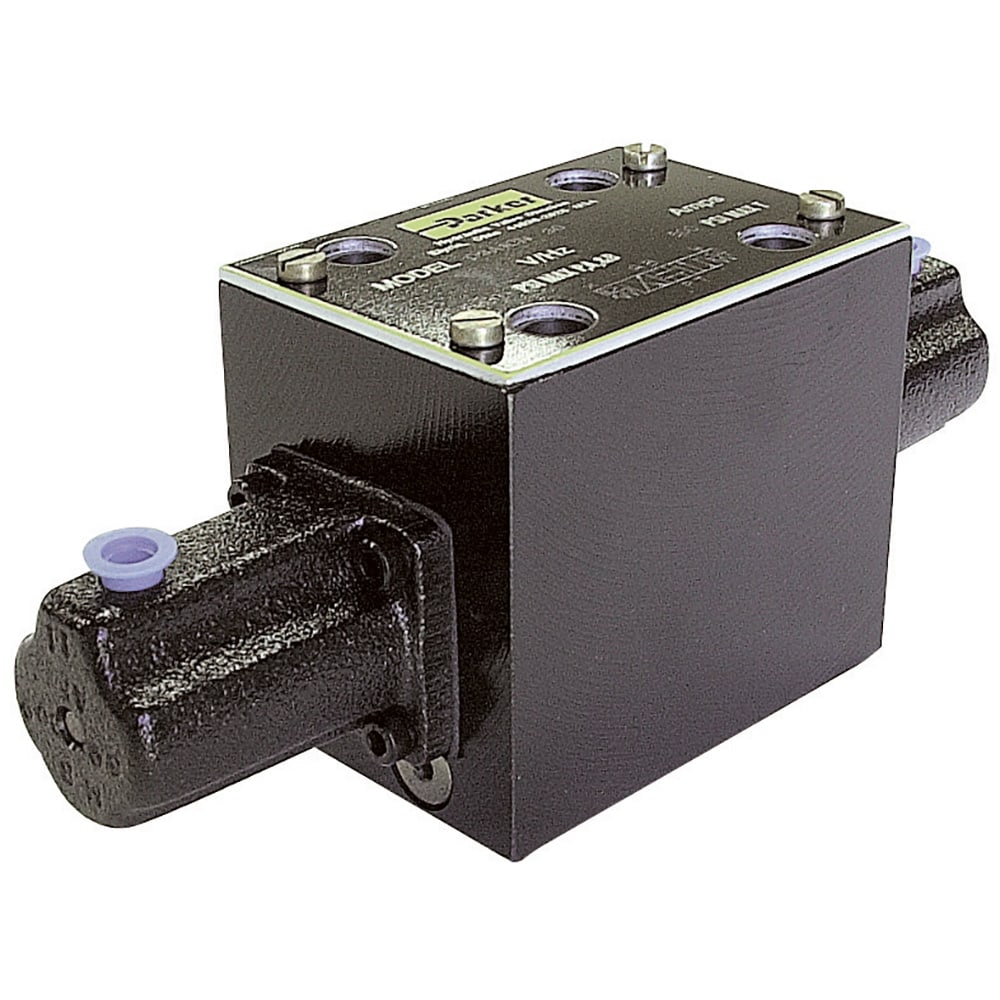

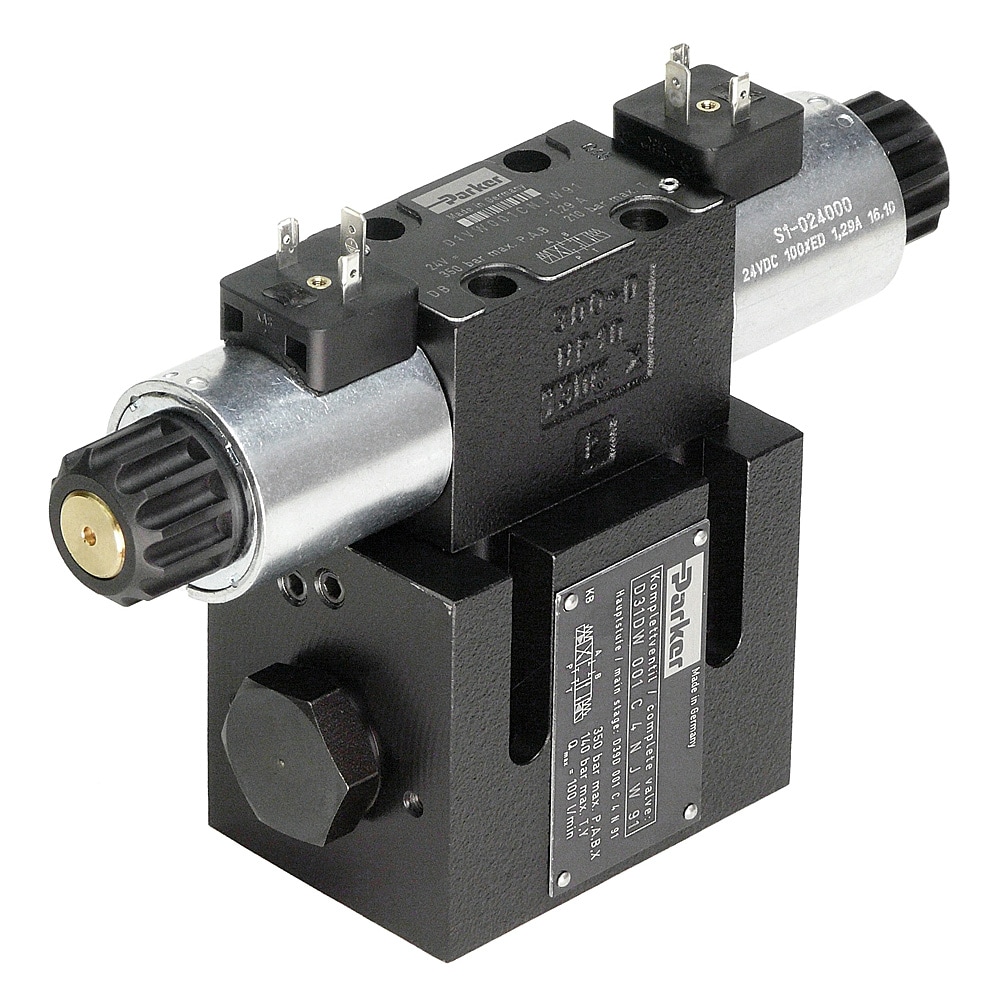

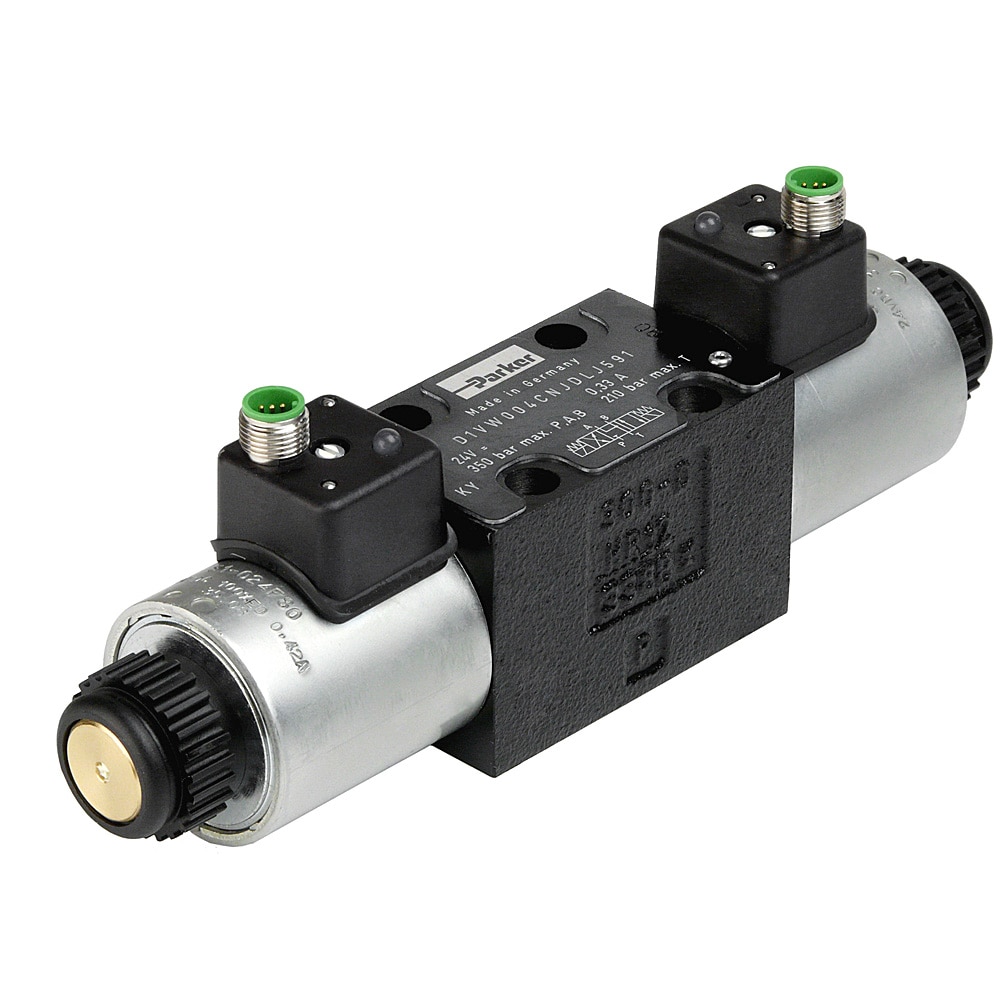

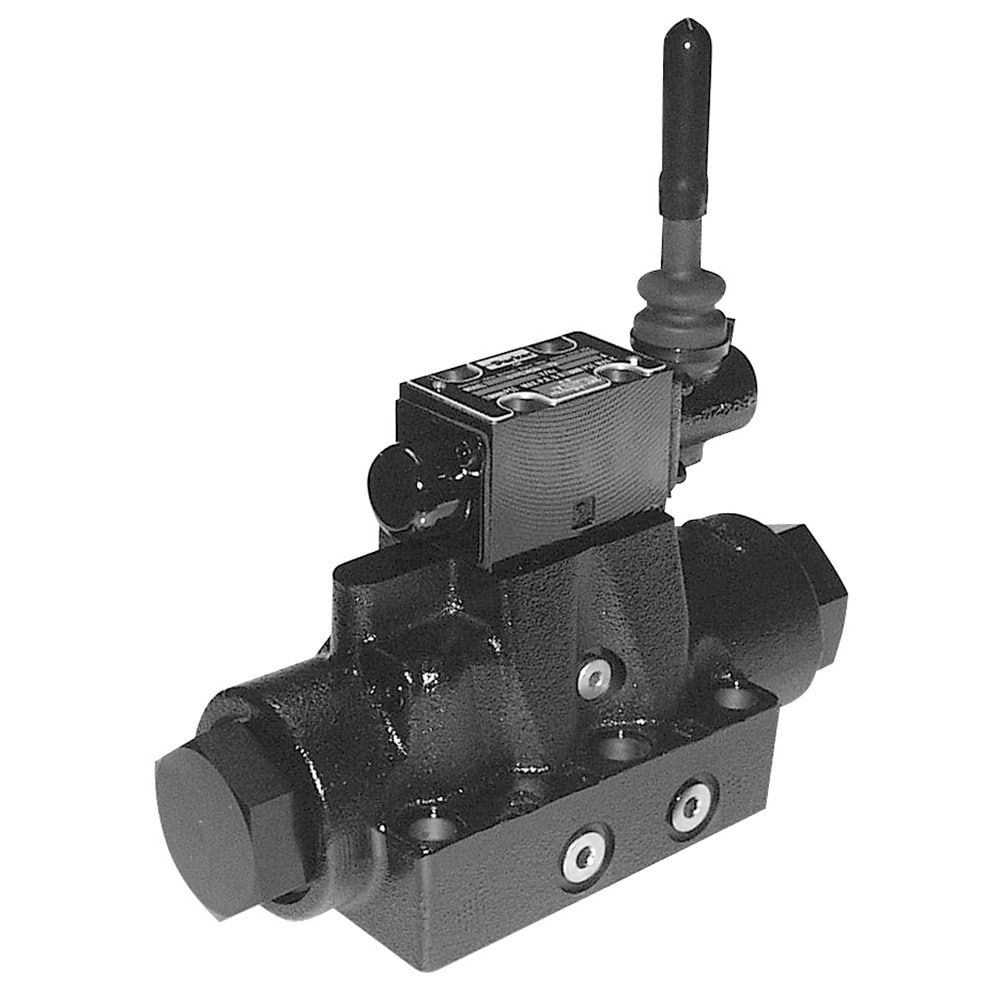

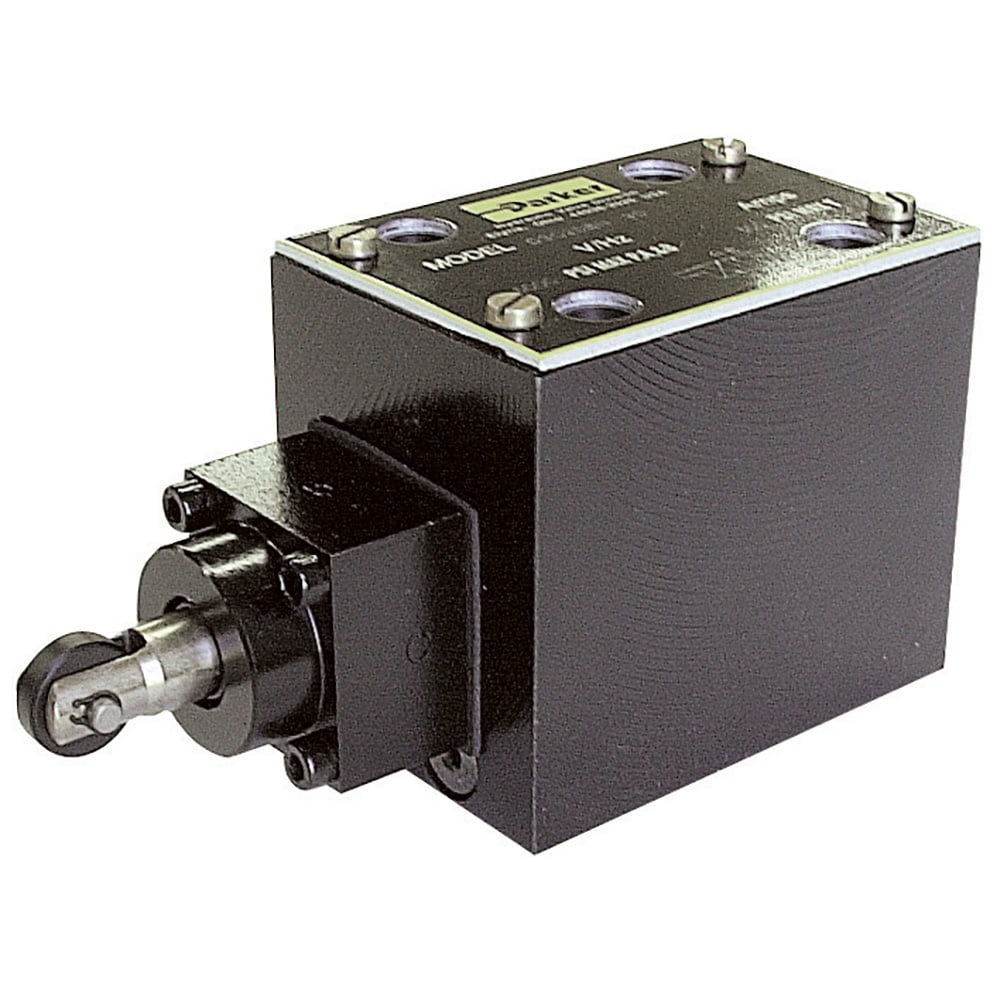

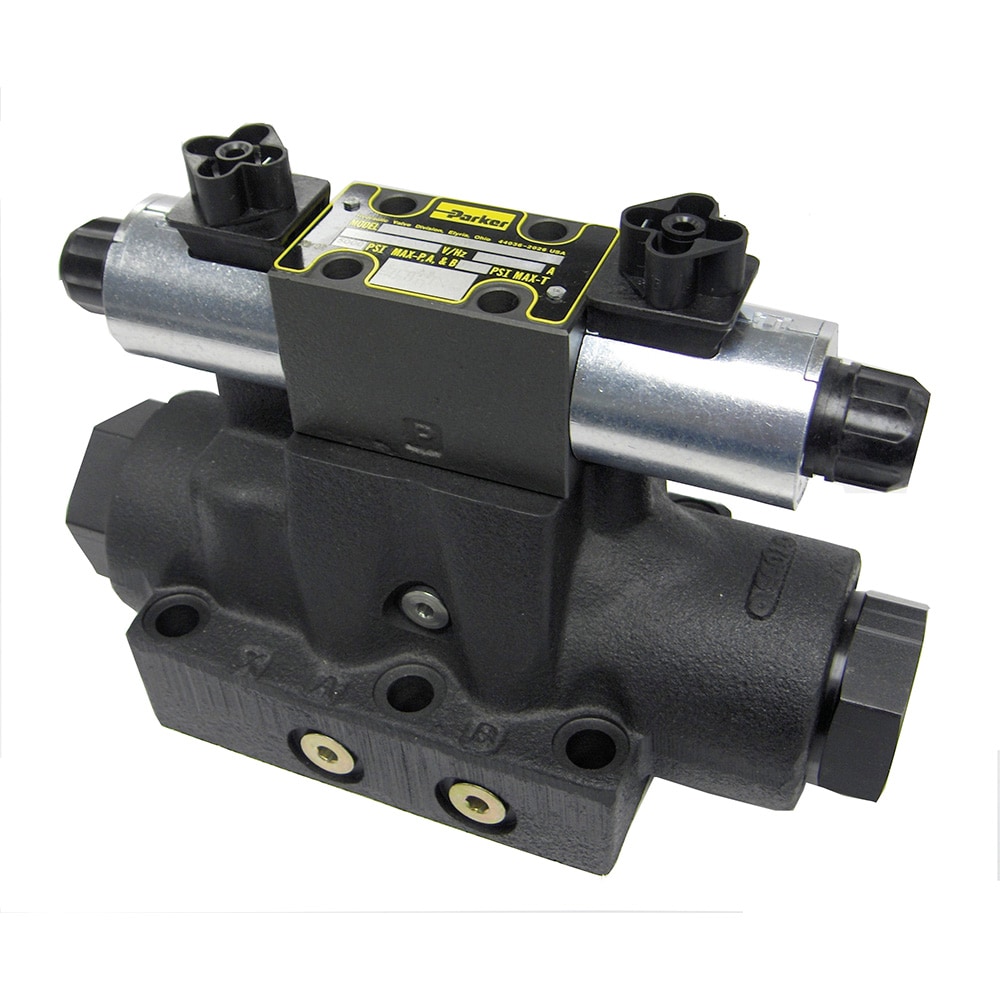

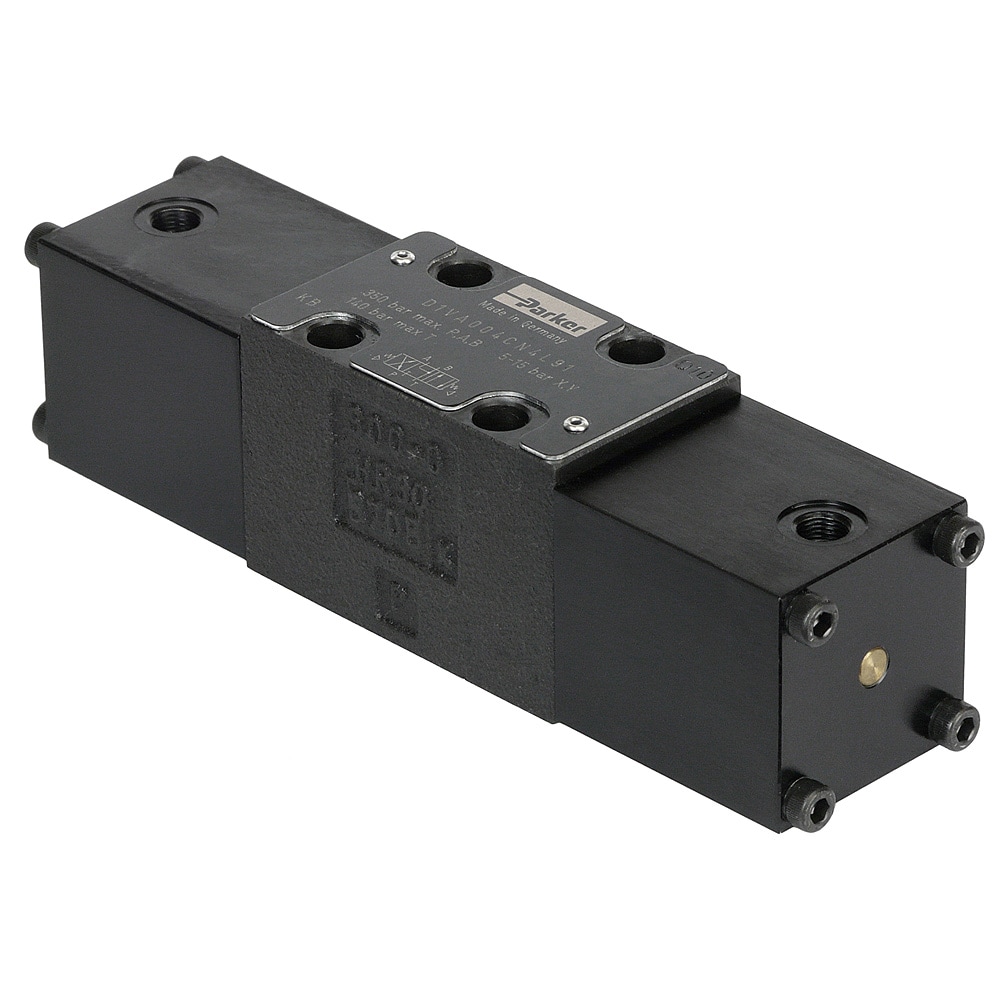

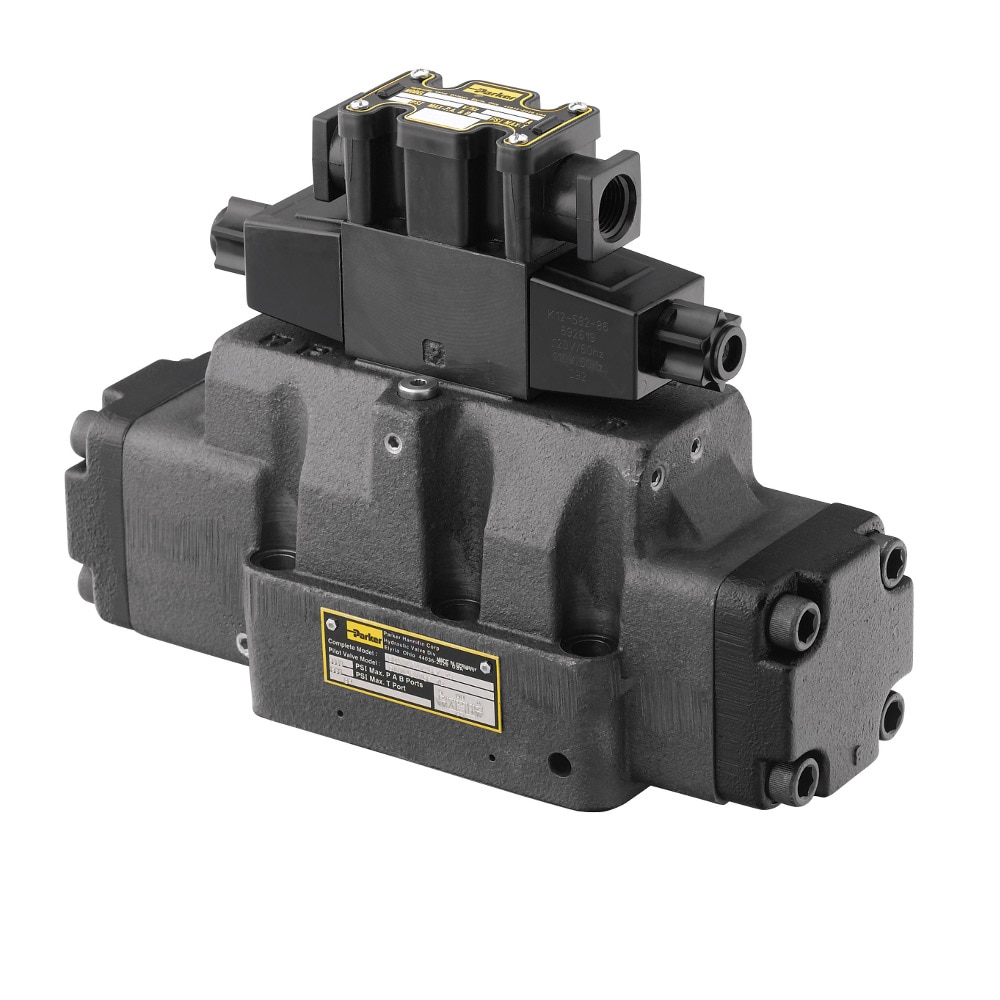

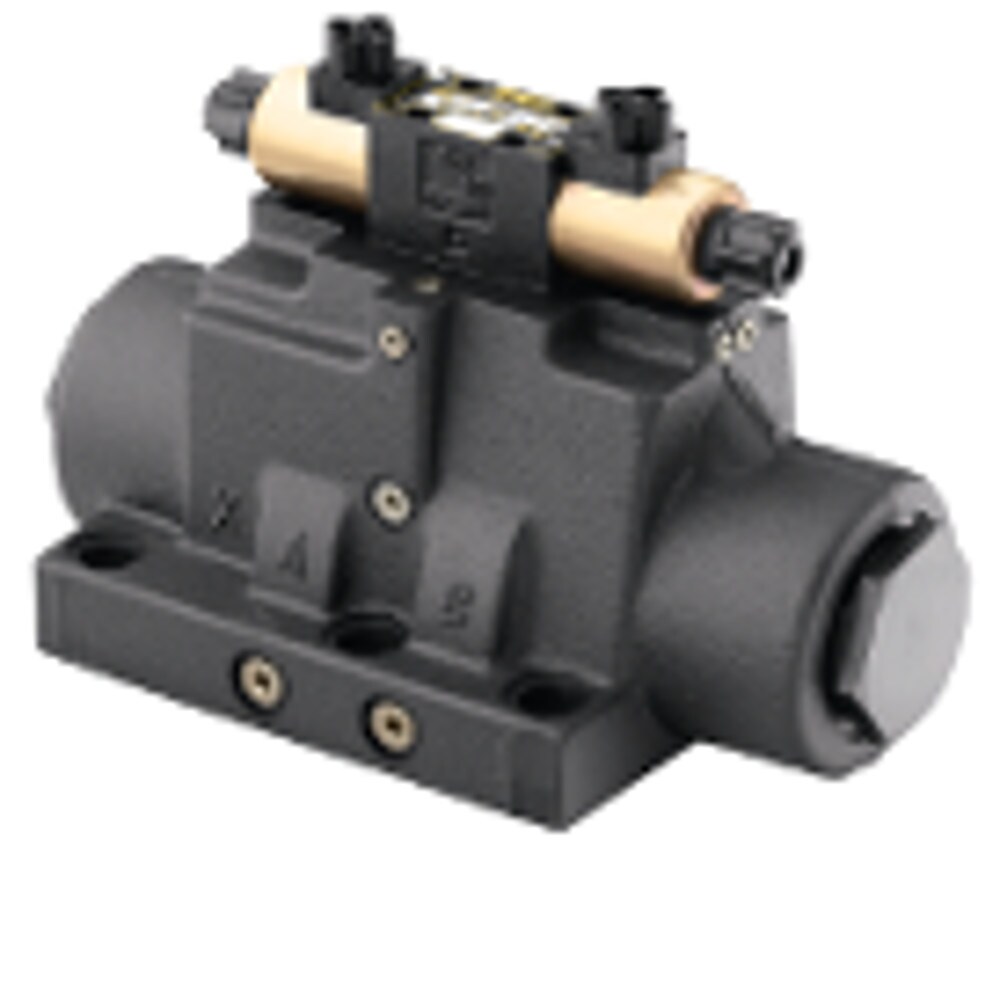

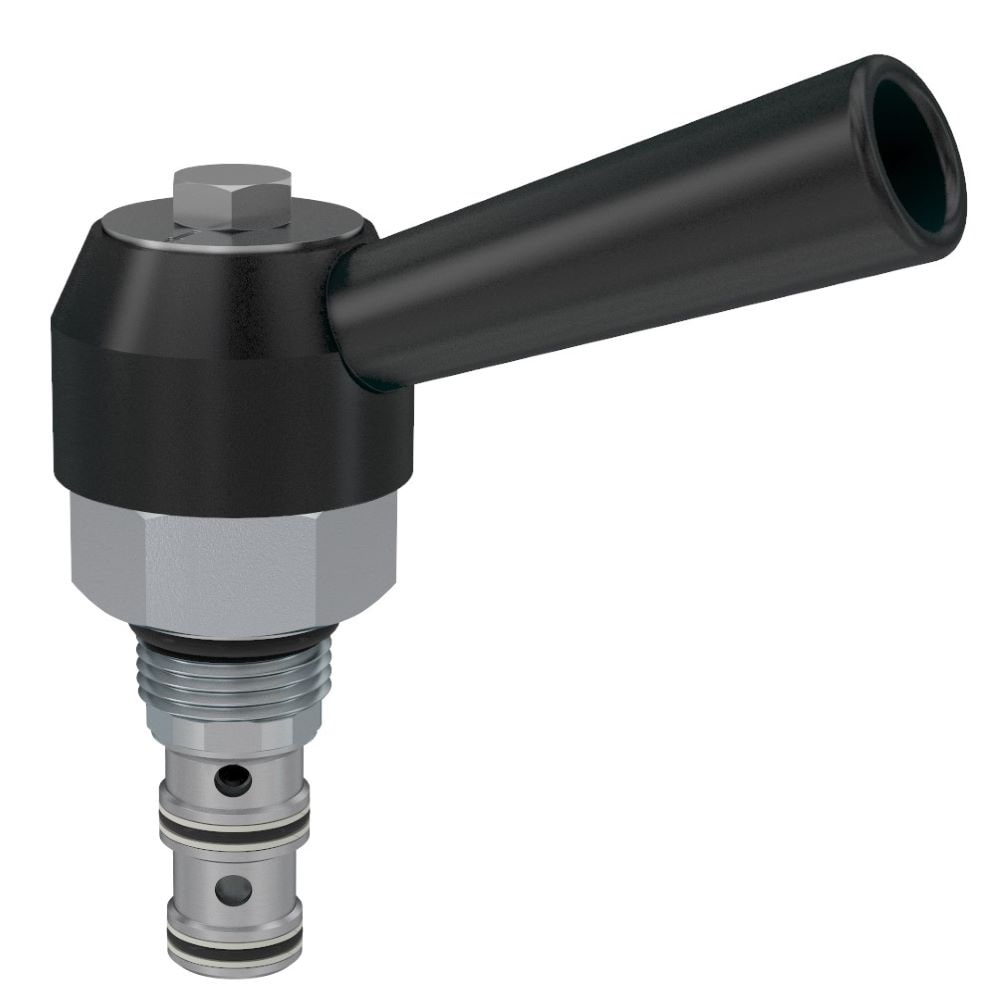

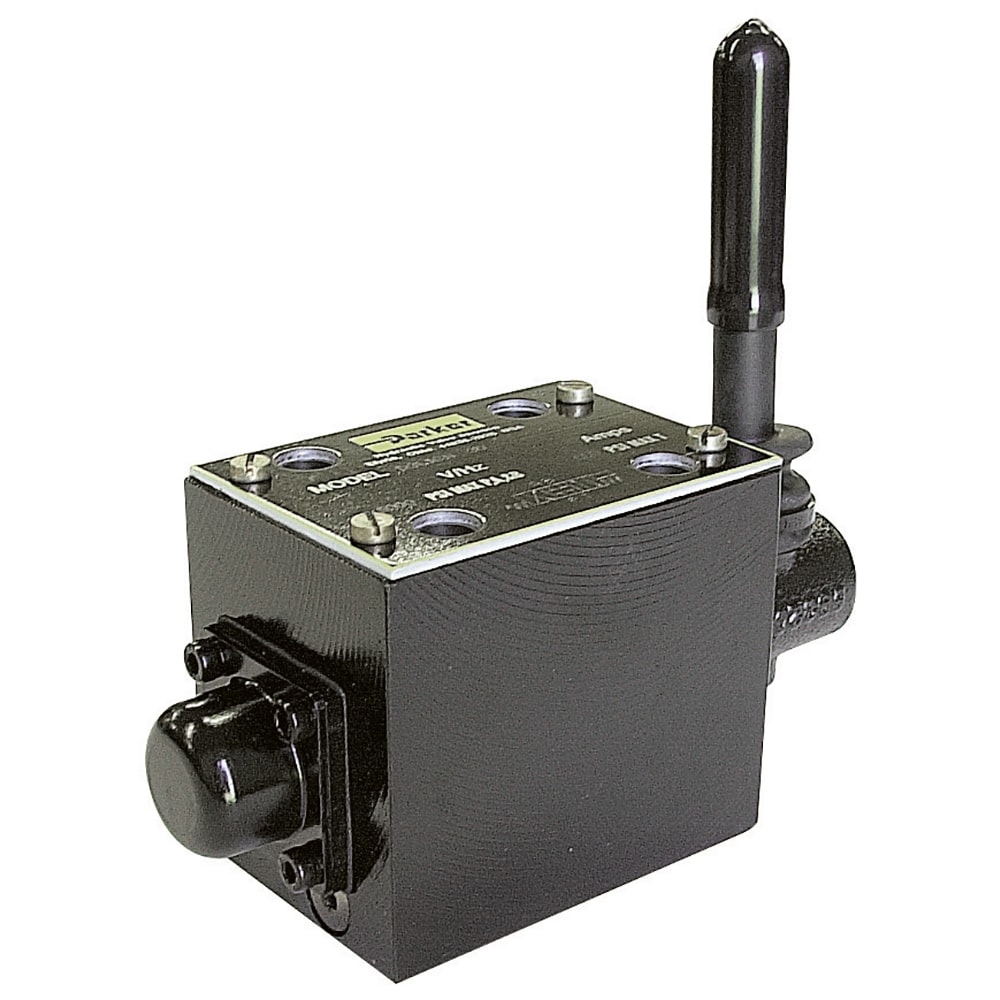

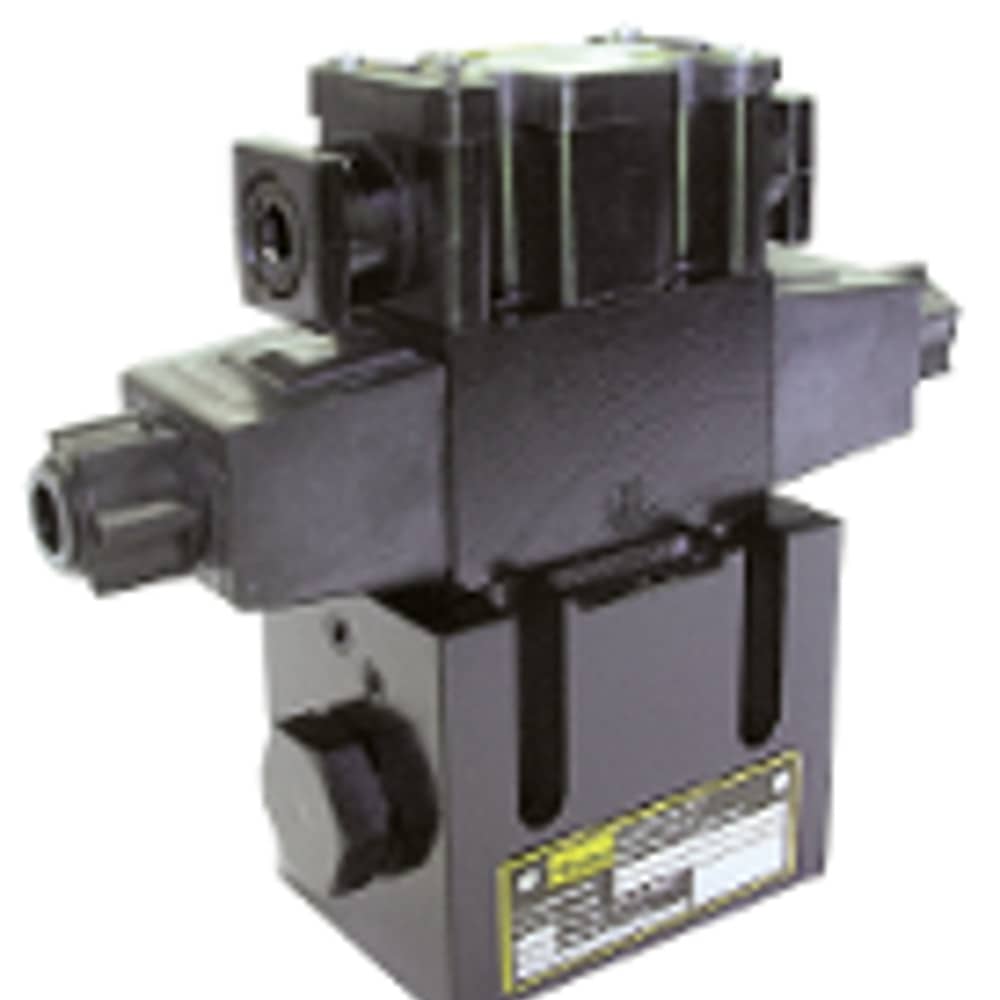

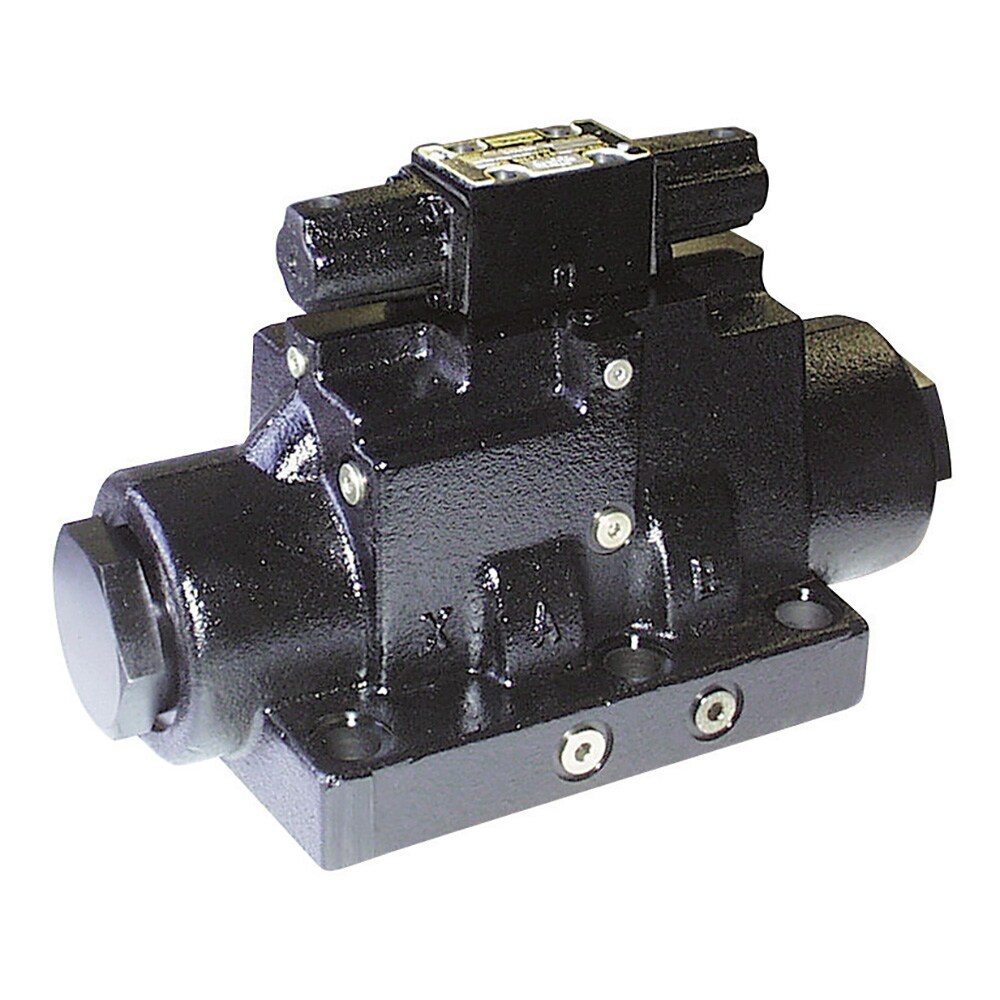

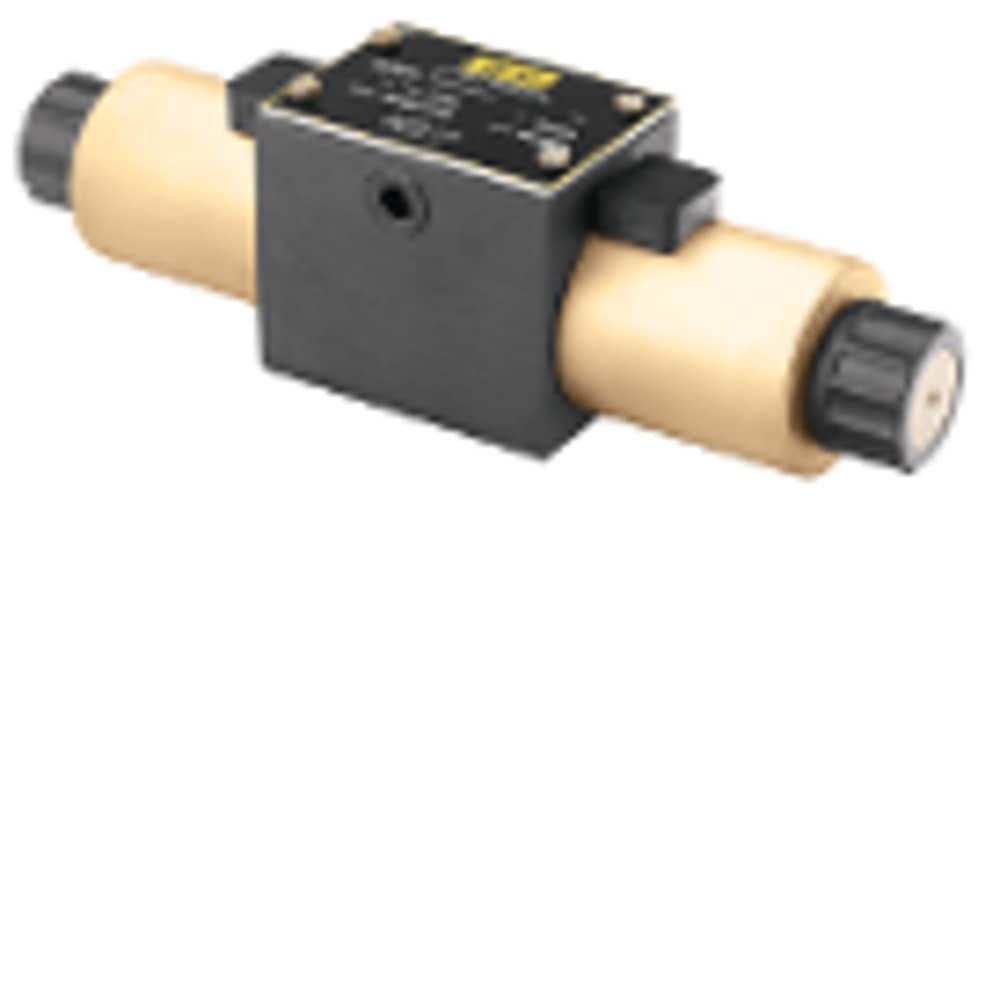

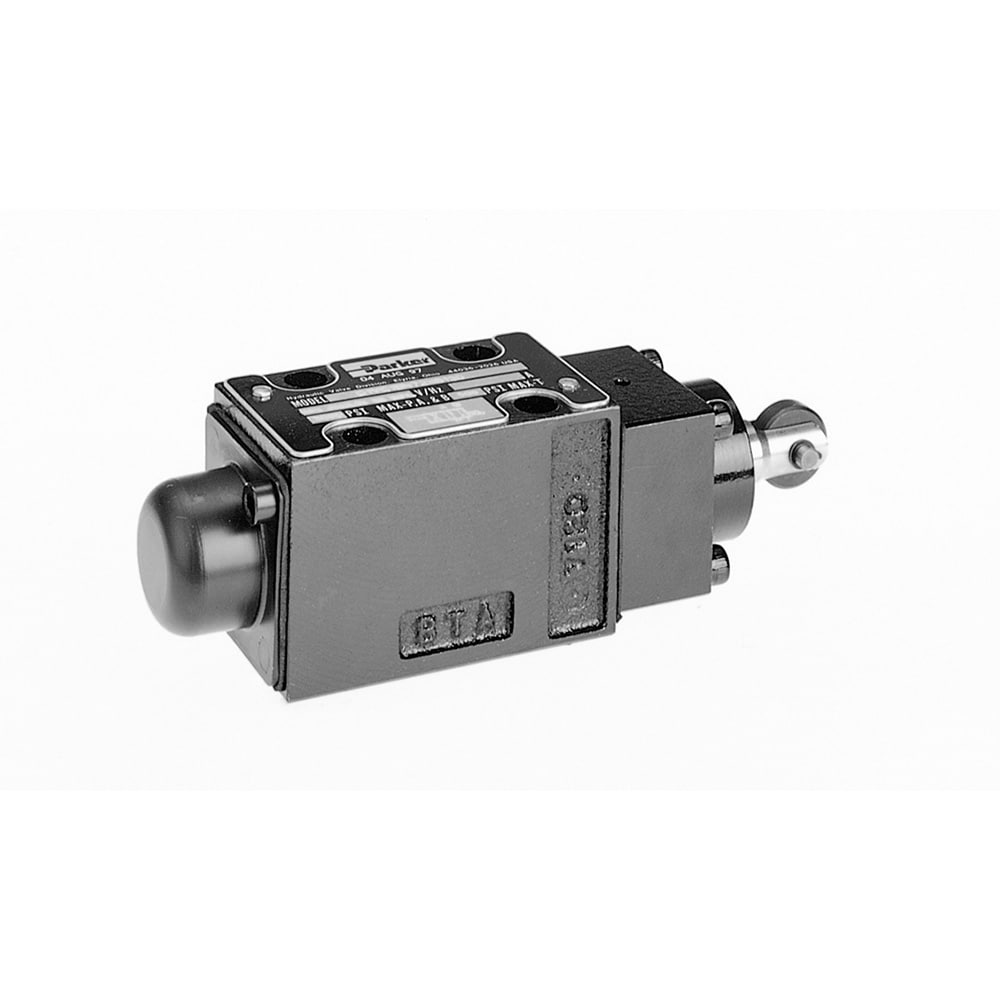

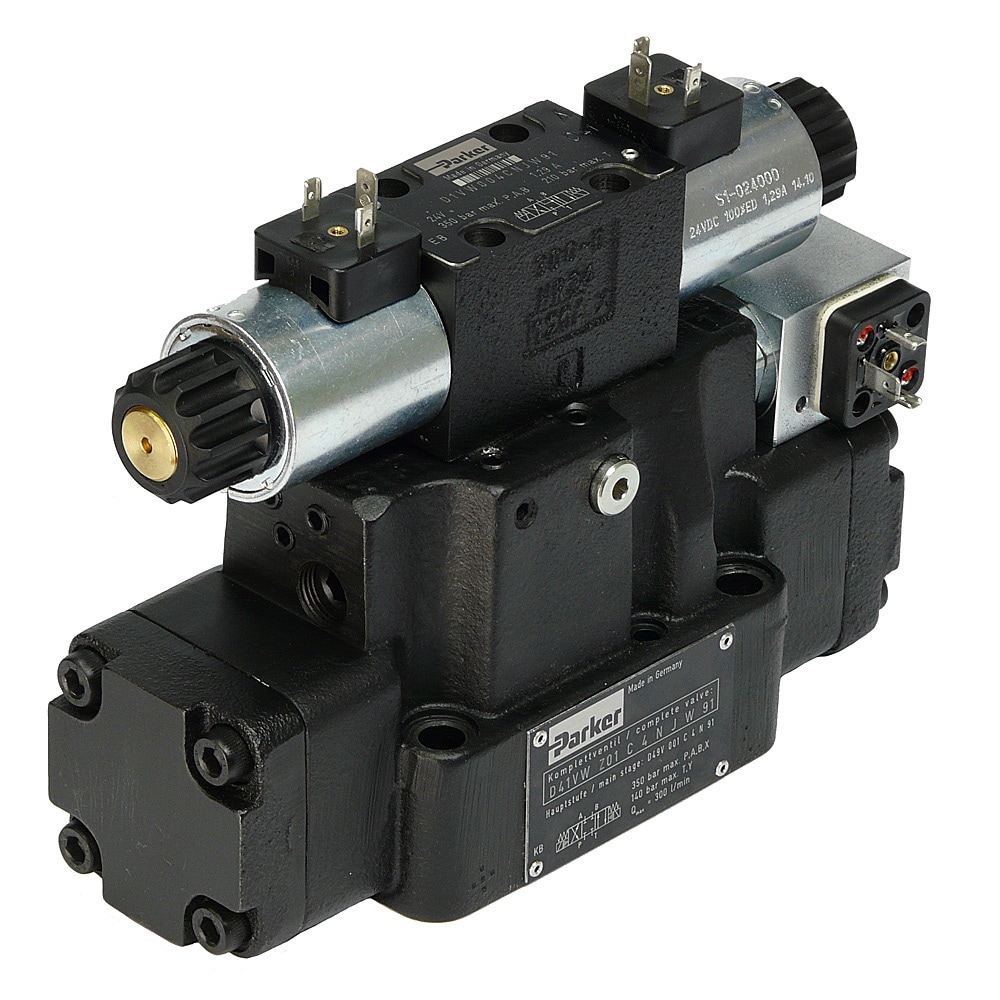

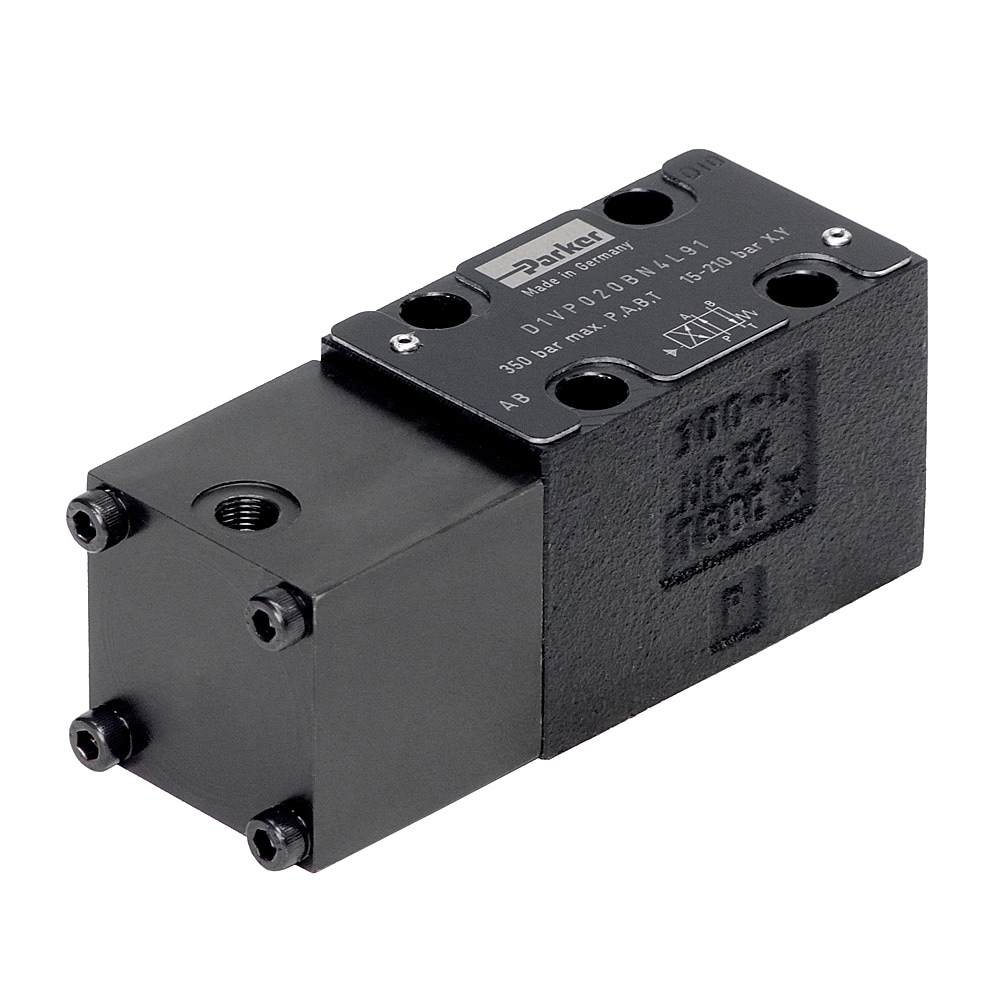

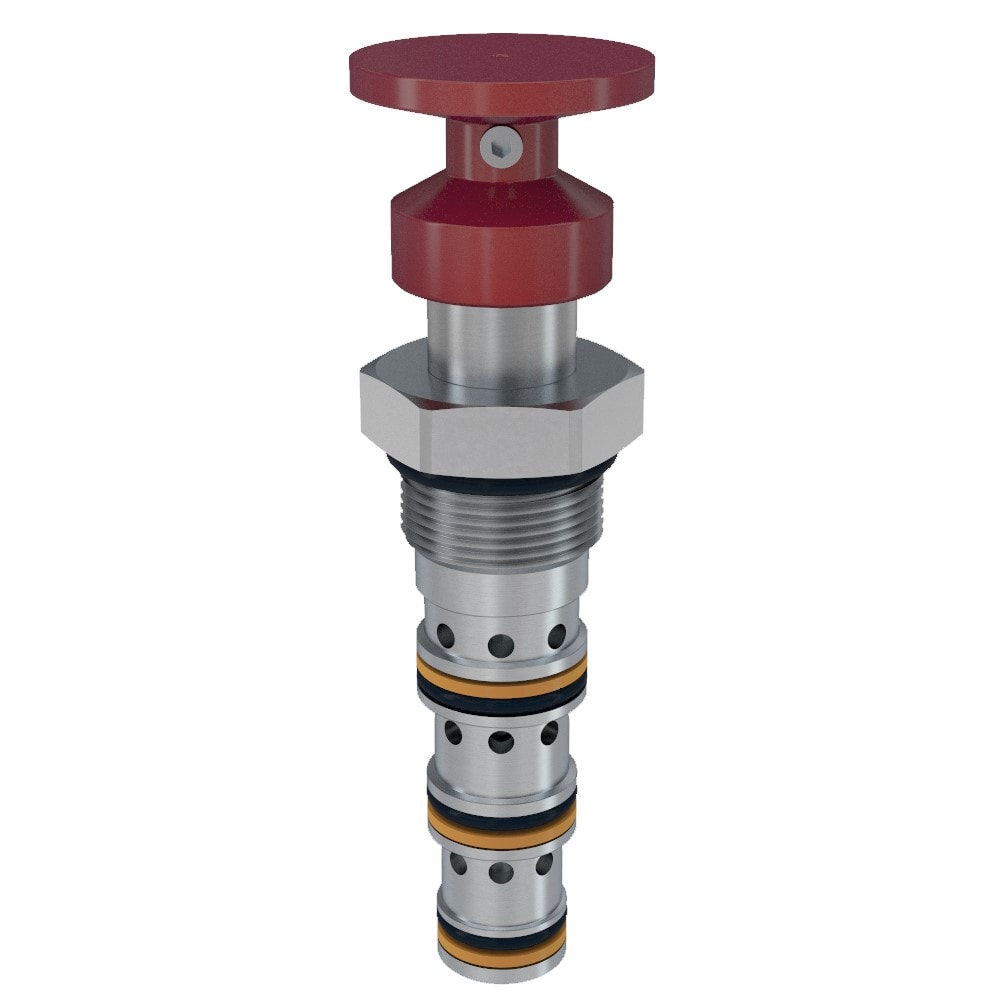

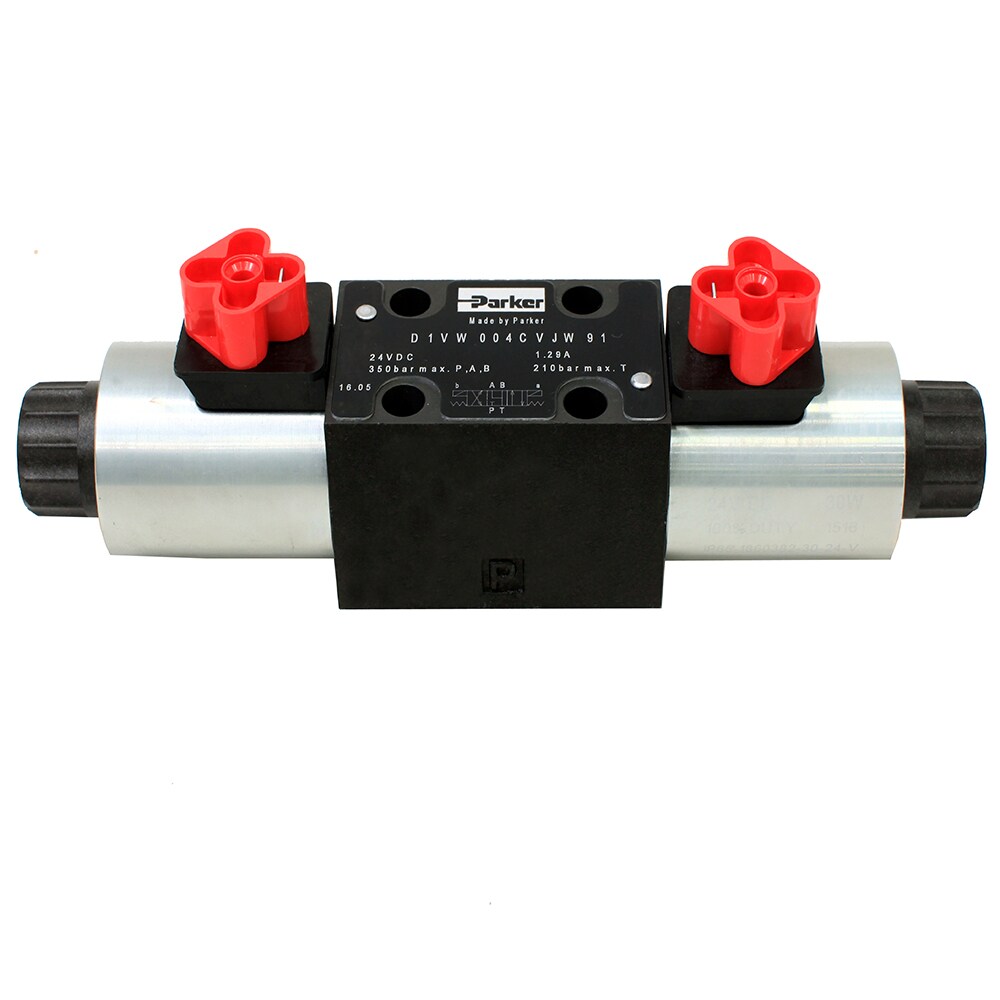

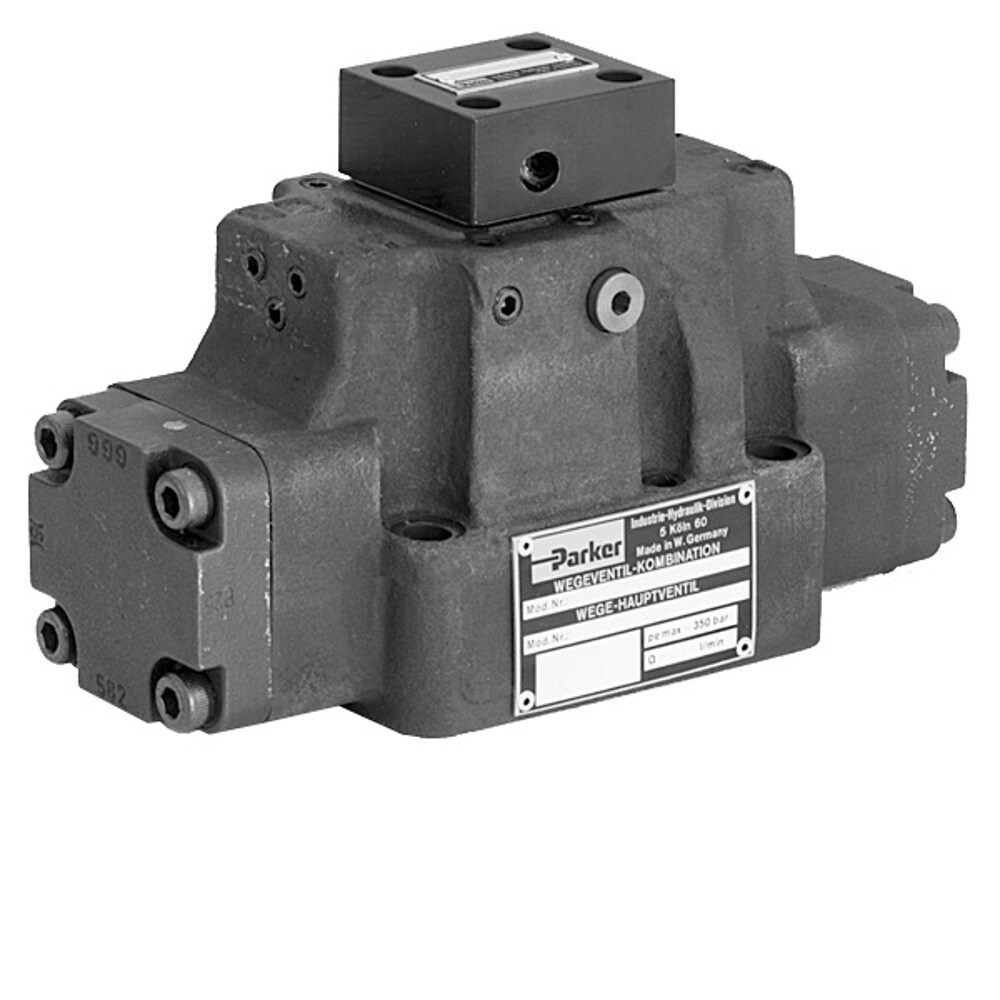

Directional spool valves may be direct-operated or pilot-operated. A direct-operated spool valve is either electrically controlled with solenoids, mechanically (e.g. manually) controlled with levers or rollers, or controlled with hydraulics or pneumatics. Whether a directional spool valve is direct- or pilot-operated depends on the actuating force needed to move the spool. Thus, this is dependent on the flow, i.e. nominal size of the directional spool valve.

When valves are operated at higher hydraulic system operating pressures, leakage losses around the spool and the housing should be taken into account, especially at system pressures over 350 bar. The leakage loss is determined by the size of the gap between the spool and the housing, the viscosity of the hydraulic fluid and the hydraulic system pressure.
